OpenVox VS-GW1600-G4 - Passerelle GSM de 4 a 20 Ports

Chargement...Chargement...
-29%

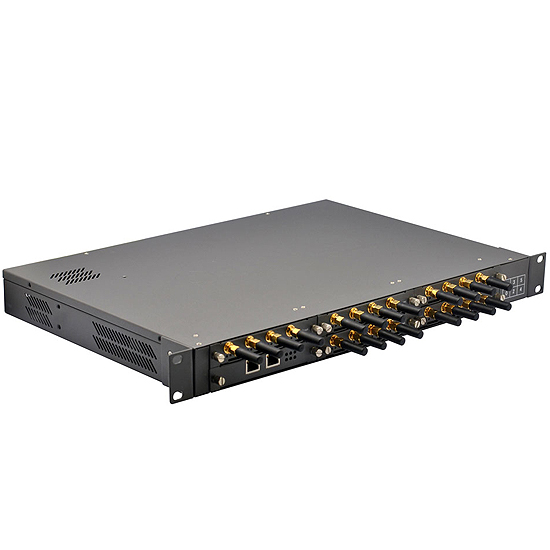

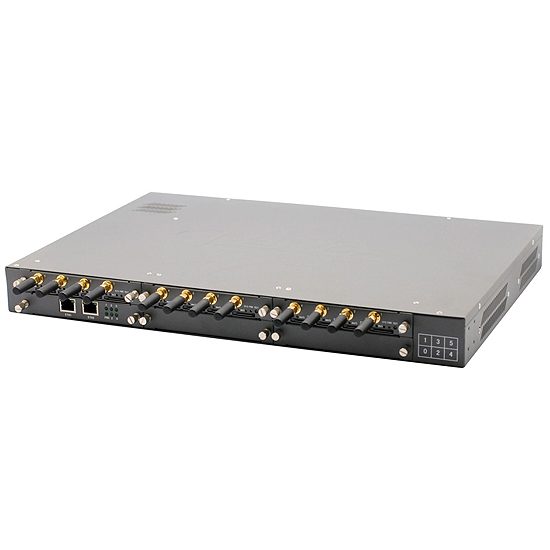

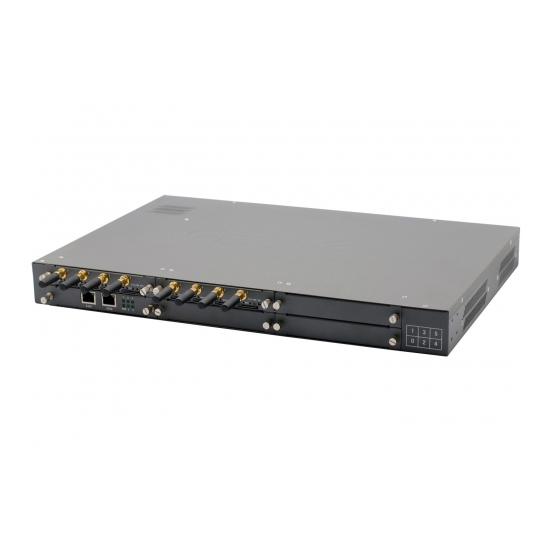

Hot-Swap VoIP GSM Gateway VS-GW1600

Prix Normal : 6 999,00 Dh HT

Votre Prix :4 999,00 Dh HT

5 998,80 Dh TTC

Economie : 2 000,00 Dh - 29%

SIP,4 GSM Channels,Quad-Band GSM/GPRS 850/ 900/1800/1900 MHz,G.711A, G.711U, G.729, G.722, G.726, iLBC, GSM,WEB,IMEI.Les Meilleurs Prix Au Maroc

Disponibilité : Nous consulter sur mv.ma
Evaluation :
  • Hot-Swap VoIP GSM Gateway VS-GW1600
  • /Images/Products/VS-GW1600-8G.jpg
  • /Images/Products/VS-GW1600-12G.jpg
  • /Images/Products/VS-GW1600-16G.jpg
  • /Images/Products/VS-GW1600-20G.jpg
Nbr GSM
Module de Passerelle OpenVox de Disque Dure HDD VS-CCU-500HDD
OpenVox - VS-CCU-500HDD
Module de Passerelle OpenVox de Disque Dure HDD
Module de Disque Dure HDD 500GB pour passerelle OpenVox VS-GW1600 ou VS-GW2120, type Notebook Hard disk size: 2.5 inches,Hard disk capacity: 500GB

Prix Normal : 5 999,00 Dh HT

Votre Prix :3 299,00 Dh HT

3 958,80 Dh TTC

Economie : 2 700,00 Dh - 45%

Module de 8 FXO/FXS pour pour les passerelles OpenVox VS-AGU-E1M800
OpenVox - VS-AGU-E1M800
Module de 8 FXO/FXS pour pour les passerelles OpenVox
Module FXO ou FXS pour les passerelles OpenVox VS-GW1202, VSGW1600 ou VS-GW2120

Prix Normal : 4 999,00 Dh HT

Votre Prix :3 799,00 Dh HT

4 558,80 Dh TTC

Economie : 1 200,00 Dh - 24%

Module de Serveur Asterisk 1000 utilisateur et 600 appels simultanés VS-CCU-N2930AM
OpenVox - VS-CCU-N2930AM
Module de Serveur Asterisk 1000 utilisateur et 600 appels simultanés
Module de Serveur Asterisk 1000 utilisateur et 600 appels simultanés, 16GB SSD; 2 USB ports; 2 ethernet port; 1 VGA port; 2-year warranty;

Prix Normal : 7 999,00 Dh HT

Votre Prix :4 999,00 Dh HT

5 998,80 Dh TTC

Economie : 3 000,00 Dh - 38%

Module De 1 à 4 acess Primaire E1 pour les passerelles Open Vox ET200X
OpenVox - VS-ET200X
Module De 1 à 4 acces Primaire E1 pour les passerelles OpenVox VS-GW1600 ou VS-GW2120
Module d'Acces Primaire E1 de 1 a 4 E1 pour passerelle OpenVox VS-GW1600 ou VS-GW2120. Disponible avec ou sans annulation d'echo.

Prix Normal : 7 999,00 Dh HT

Votre Prix :4 999,00 Dh HT

5 998,80 Dh TTC

Economie : 3 000,00 Dh - 38%

VoxStack Module de Passerelle 4 GSM Channels VS-GWM400G
OpenVox - VS-GWM400G
VoxStack Module de Passerelle 4 GSM Channels
Module VS-GWM400G permet sans fil VS-GW1200/1600 passerelles de la série OpenVox pour soutenir la liaison GSM pour les périphériques VoIP.

Prix Normal : 5 999,00 Dh HT

Votre Prix :3 799,00 Dh HT

4 558,80 Dh TTC

Economie : 2 200,00 Dh - 37%

Product Spotlight

OpenVox VoxStack Series GSM Gateway is an open source asterisk-based GSM VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway.Also secondary development can be completed through AMI (Asterisk Management Interface).

  • Independent System for Each Module
  • Affordable Price with Superior Performance
  • Hot-swap Design for both Sim cards and Modules
  • Compatible with Asterisk, Elastix, 3CX, FreeSWITCH Sip Server
  • Available for OEM
  • Lifetime Warranty*





Overview

There are two GSM Gateway models with VoxStack series GSM Gateway, the VS-GW1200-4G and VS-GW1600. The Modular Design GSM Gateways are ranging from 4 up to 20 GSM channels, developed for interconnecting a wide selection of codecs and signaling protocol, including G.711A, G.711U, G.729, G.722, G.726, GSM & SIP, to the GSM cellular networks to quickly reduce telecommunication expenses and maximize cost-savings. With the unique design of the VoxStack Gateway, it can support hot-swap for both SIM cards and GSM gateway modules. Users can simply add or remove the modules for hardware expansion or exchange. Each GSM gateway module runs an independent asterisk system inside.

The VoxStack gateway designs with a Lan Switch board that provides stackability on the hardware upgrade. It supports SMS messages sending and receiving and group sending and SMS to email. The GSM Gateways will be 100% compatible with asterisk, Elastix, trixbox, 3CX and FreeSWITCH sip server.

Technical Specifications:
  • 4/8/12/16/20 GSM Channels
  • 1 SIM card per GSM channel
  • Quad-Band GSM 850/ 900/1800/1900 MHz
  • Fast call setup
  • PIN modification
  • 2 LAN ports
  • Storage temperature range: -40~125℃
  • Operation temperature range: 0~50℃
  • Operation humidity range: 10%~90% non-condensing
  • Power source: 1U ATX power souce,12V/12A
  • Max power: 180W
  • Dimension: 44cm × 4.5cm × 30cm
  • Weight:
    VS-GW1600: 4301g

    VS-GWM400G: 214g
Features:
  • Hot-swap
  • Support SMS sending, receiving, grouping sending
  • Support transferring SMS to E-mail
  • Support checking number
  • Support SIP1.0/2.0,enhanced SIP function
  • Support USSD service
  • Support IMEI modification
  • Compatible with Asterisk, Elastix, 3CX, FreeSWITCH SIP Server


The VS-GW1600 Includes The Following Models:
Product  ModelDescription
VS-GW1600-4G4 GSM Channels VoIP Gateway
VS-GW1600-8G8 GSM Channels VoIP Gateway
VS-GW1600-12G12 GSM Channels VoIP Gateway
VS-GW1600-16G16 GSM Channels VoIP Gateway
VS-GW1600-20G20 GSM Channels VoIP Gateway
