OpenVox

OpenVox VS-ET200X - Module De 1 à 4 acces Primaire E1 pour les passerelles OpenVox VS-GW1600 ou VS-GW2120

Chargement...Chargement...
-50%
Module De 1 à 4 acess Primaire E1 pour les passerelles Open Vox ET200X

Prix Normal : 7 999,00 Dh HT

Prix :4 999,00 Dh HT

Prix Promo : 3 999,20 Dh HT

4 799,04 Dh TTC

Economie : 3 999,80 Dh - 50%

Module d'Acces Primaire E1 de 1 a 4 E1 pour passerelle OpenVox VS-GW1600 ou VS-GW2120. Disponible avec ou sans annulation d'echo.

Disponibilité : Nous consulter sur mv.ma
Evaluation :
  • Module De 1 à 4 acess Primaire E1 pour les passerelles Open Vox ET200X

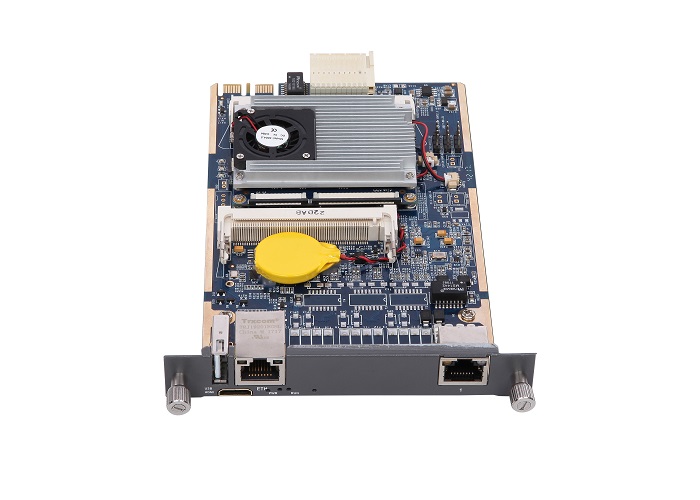

  • /images/Products/ET2001L-1_3d9c78fe-ef9e-46a6-a1ff-7929fa38957a.jpg

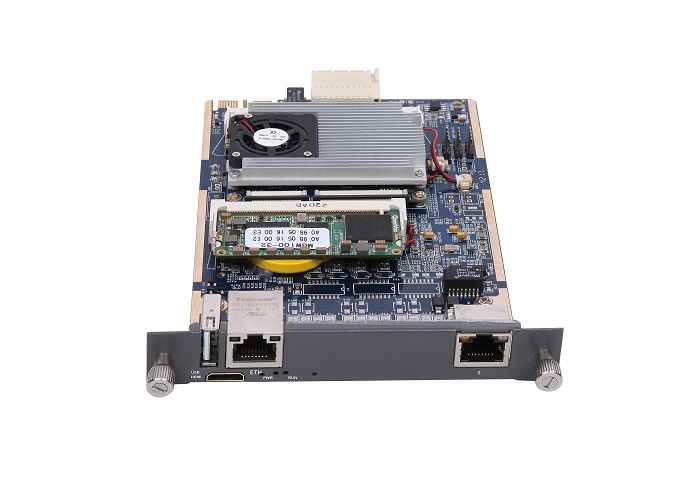

  • /images/Products/ET2001_7a859033-d324-441e-bbd1-54ba8ce5560a.jpg

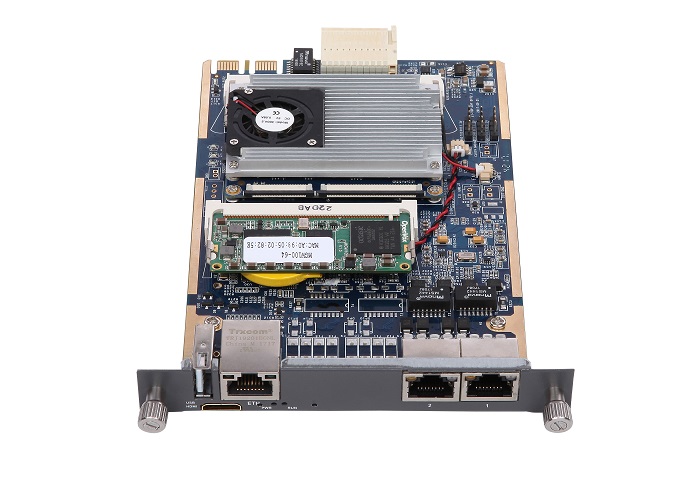

  • /images/Products/ET2002_4cdde7b3-9af9-4b47-be03-e3274416d7db.jpg
  • /images/Products/ET2002L_0674ce79-c6af-44cd-b3fa-ebbde786c181.jpg
  • /images/Products/ET2002-panel_6f2c75d5-a972-4700-b95c-e49d56c0eb37.jpg

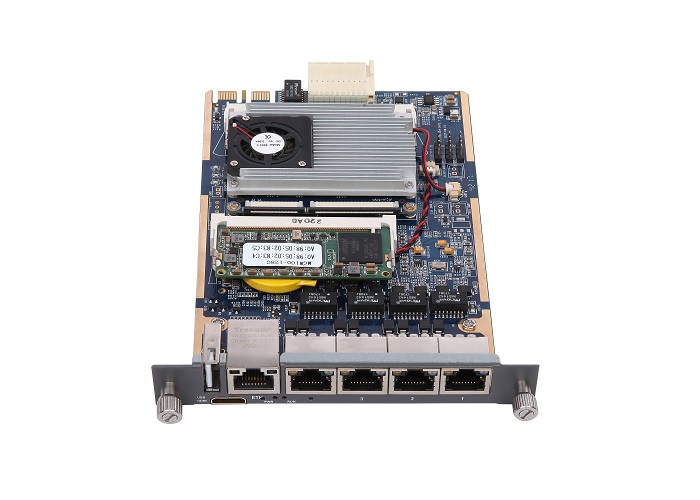

  • /images/Products/ET2004_417cb228-4b3b-4c45-a79b-45d7ecbb5fe1.jpg
Nombre de E1
Description
ET200X Gateway is an open source asterisk-based VoIP Gateway solution for operators and call centers. It is a converged media gateway product. This kind of gateway connects traditional telephone system to IP networks and integrates VoIP PBX with the ISDN seamlessly. With user friendly GUI, customers may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface). ‘L’ means that the device has no hardware codec V100 module.

The ET200X Gateway supports 1/2/4 software-selectable T1/E1/PRI interface and supports up to 30/60/120 concurrent calls.

Target Applications

• Connect legacy PBX systems to low-cost VoIP services
• Connect legacy PBX systems to remote sites over private VoIP links
• Connect IP PBX systems to legacy TDM services
• Phased transition from legacy PBX to IP PBX
• Connect virtualized systems to legacy TDM services
• Transcoding by connecting systems using varying codecs
• Lync connectivity to SIP or legacy TDM providers and SIP or Legacy PBX


Technical Specifications

• 1 10/100M Ethernet port
• 1 USB 2.0 port
• 1 HDMI port
• Power: 12W Maximum.
• Power Adapter:12V/2A
• Operation temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Operation environment humidity:10%-90%  No condensation

ET200X Gateway
  Product ModelET2001ET2002ET2004ET2001LET2002L
E1/T1 Port12412
Codec & EC Moduleyesno
Size100*162.5mm
Weight210g216g226g202g207g


System Features

 Available in 1/2/4 port T1/E1, energy efficiency concurrent processing, up to 120 channels
 Signalling: PRI/R2/SS7
 Support up to 24 countries’ standard R2 signalling
 Support new R2 variant
 Simple and convenient configuration via Web GUI
 Codecs support: G.711A, G.711U, G.729A, G.723.1, G.722, GSM
 Support protocols:SIP、IAX、TCP、UDP、RTP、SSH、HTTP、HTTPS
 Support NTP time synchronization and client time synchronization
 Support SSH access for background management, Asterisk CLI command operation
 Open API interface (AMI)
 Support ports group management
 Support custom dialplans
 Echo Cancellation (Octasic® DSP)
 Firmware update by HTTP
 Support call statistics
 Support auto provision
 Support channel status show dynamically
 Support backup/upload configuration file
 Multiple detailed log output
 Support Chinese language
 Automatically reboot
 Compatibility with all kinds of SIP servers, such as Asterisk, Elastix, Freeswitch and other IPPBX platforms
 Available for OEM
 3-month "No Question Asked" Return Policy, and Two-year Warranty
SIP Features
 Support add, modify & delete SIP Accounts
 SIP registration with Domain
 Support multiple SIP registrations:Anonymous, Endpoint registers with this gateway and this gateway registers with the endpoint
 SIP accounts can be registered to multiple servers
 Combine different SIP Trunks into group
 SIP(RFC3261) compliance
 DTMF: RFC2833, SIP INFO, INBAND
 Support T.38 /Pass-through Fax
Routing
 Flexible routing settings
 Support 512 routing
 Support caller/callee manipulation and filtering
 Trunk group support, Trunk priority management
 Support add, modify & delete routing
 E1/T1 port grouping
 Support Failover
Network Features
 Network type: Static IP and DHCP
 IPv4, UDP/TCP, DHCP, TFTP, SCP
 HTTP/HTTPS/SSH
 Support DDNS
 Support ping & traceroute command on the web
 Support network capture on the web
Moyenne des revuesAverage Rating 3
