VoIP VM-S2024PEG-C - 24-port 10/100/1000M PoE Switch, 16 10/100/1000M RJ45 ports,managed

Chargement...Chargement...
-38%

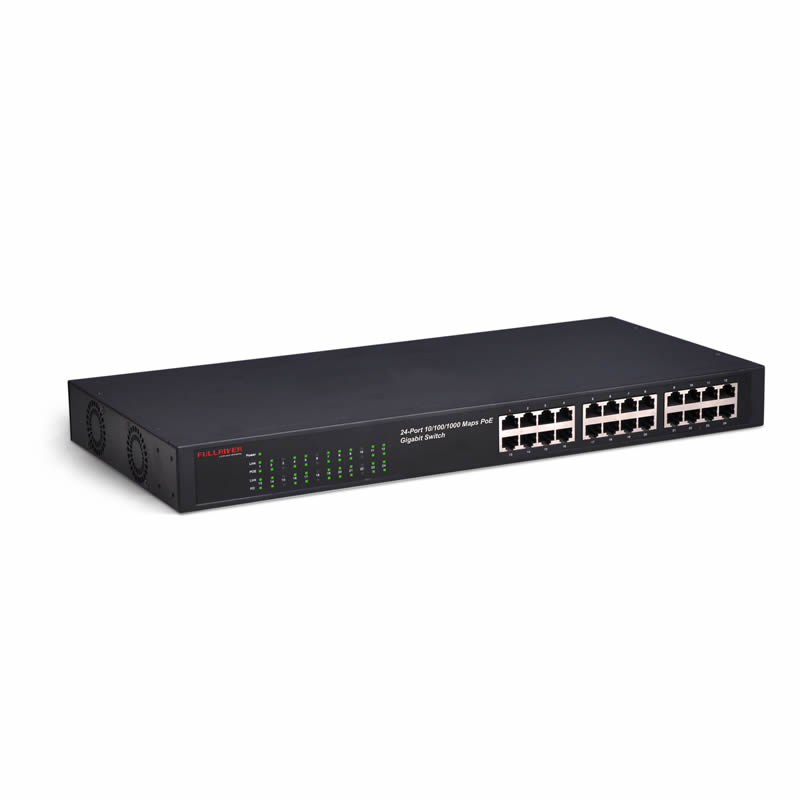

24-port 10/100/1000M PoE Switch, 16 10/100/1000M RJ45 ports,managed FR-S2024PEG-C
VM-S1024PEG-C 24 ports 10/100 / 1000M Switch PoE fournit la connexion réseau sans coupure.Ne pas utiliser sur plus de 12 caméras.

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • 24-port 10/100/1000M PoE Switch, 16 10/100/1000M RJ45 ports,managed FR-S2024PEG-C

FICHE TECHNIQUE



Descriptions du Produit


VM-S1024PEG-C 24-port 10/100/1000M POE Switch provides the seamless network connection. It integrates 10/100/1000Mbps Ethernet network capabilities. These POE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.


Features

  Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab standards
  24 x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  Supports PoE power up to 30W for each PoE port
  Supports ALL power up to 260W
  Supports PoE IEEE802.3at compliant PDs
  Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  16K entry MAC address table of the VM-S2024PEG with auto-learning and auto-aging
  LED indicators for monitoring power, link, activity and speed
  Internal power adapter supply

SPECIFICATIONS

Model

VM-S1024PEG-C

Chipset

RTL8389L + RTL8218+RTL8231

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af

Network Media (Cable)

10BASE-T: UTP category 5 cable (maximum 100m) 100BASE-T: UTP category 5 cable (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

Number of Ports

24 x 10/100/1000Mbps Auto-Negotiation ports

LED indicators

Port

Link/Act

POE

POE

Other

Power

Transfer Method

Store-and-Forward

MAC Address Table

16K

Switching Capacity

48Gbps

Frame Filtering and Forward Rate

10Mbps: 14880pps

100Mbps: 148800pps

1000Mbps: 1488000pps

Dimensions (L × W × H)

442*208*44 mm

Environment

Operating Temperature: 0~40

Storage Temperature: -10~70

Operating Humidity: 10%~90% non-condensing

Storage humidity: 5%~90% non-condensing

Téléchargements


iconUser Manual 24 ports .pdfTélécharger

Moyenne des revuesAverage Rating 3

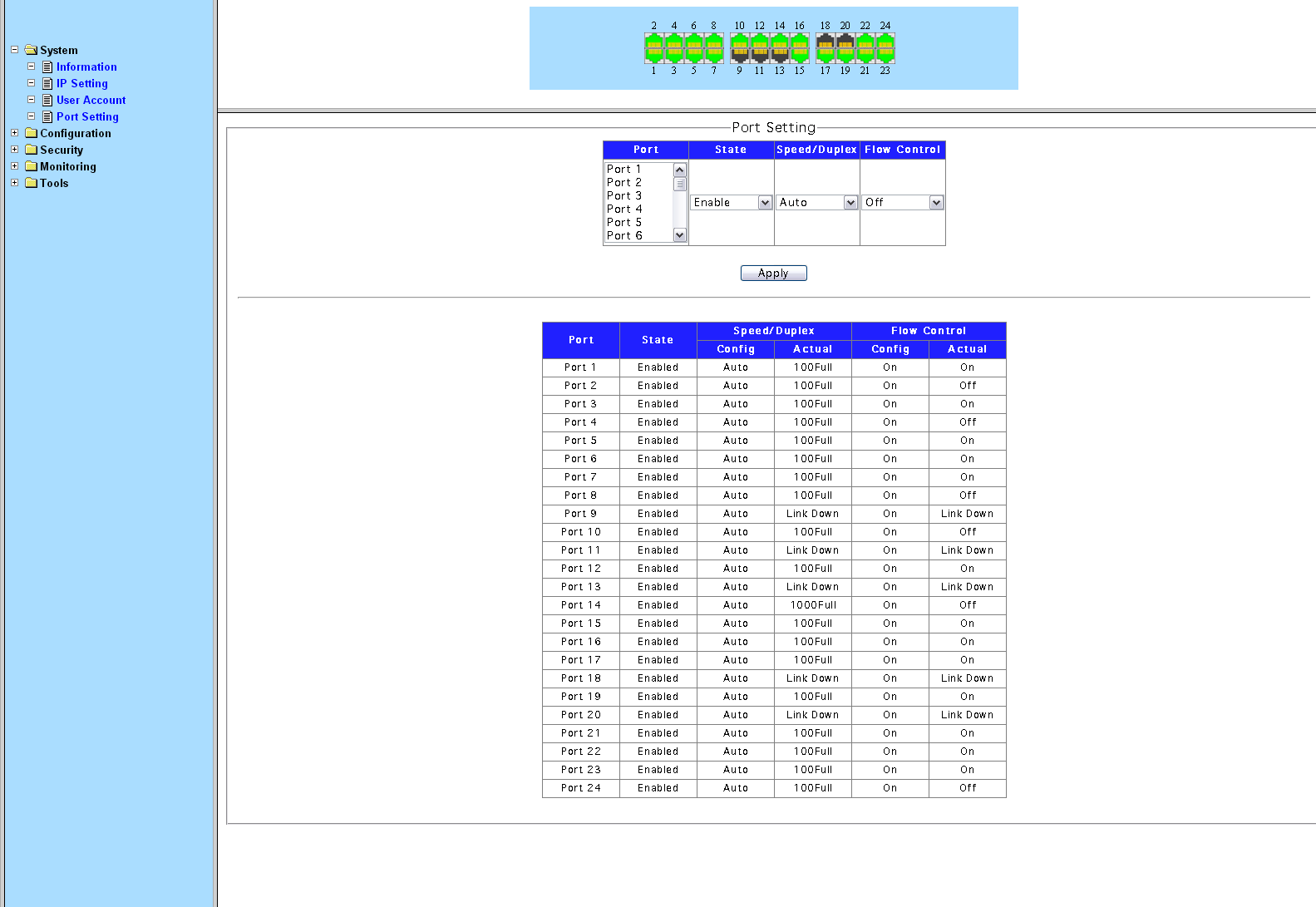

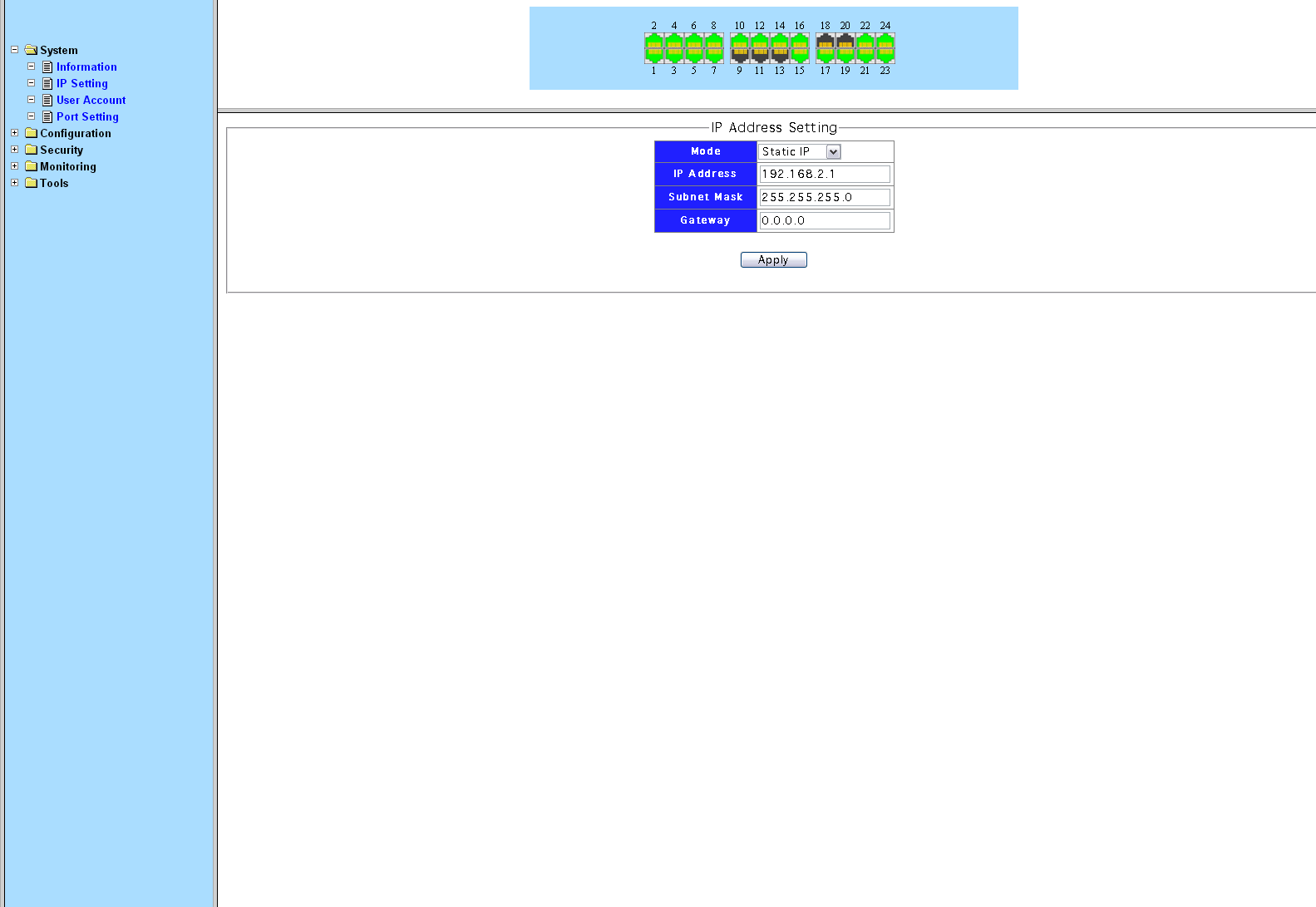

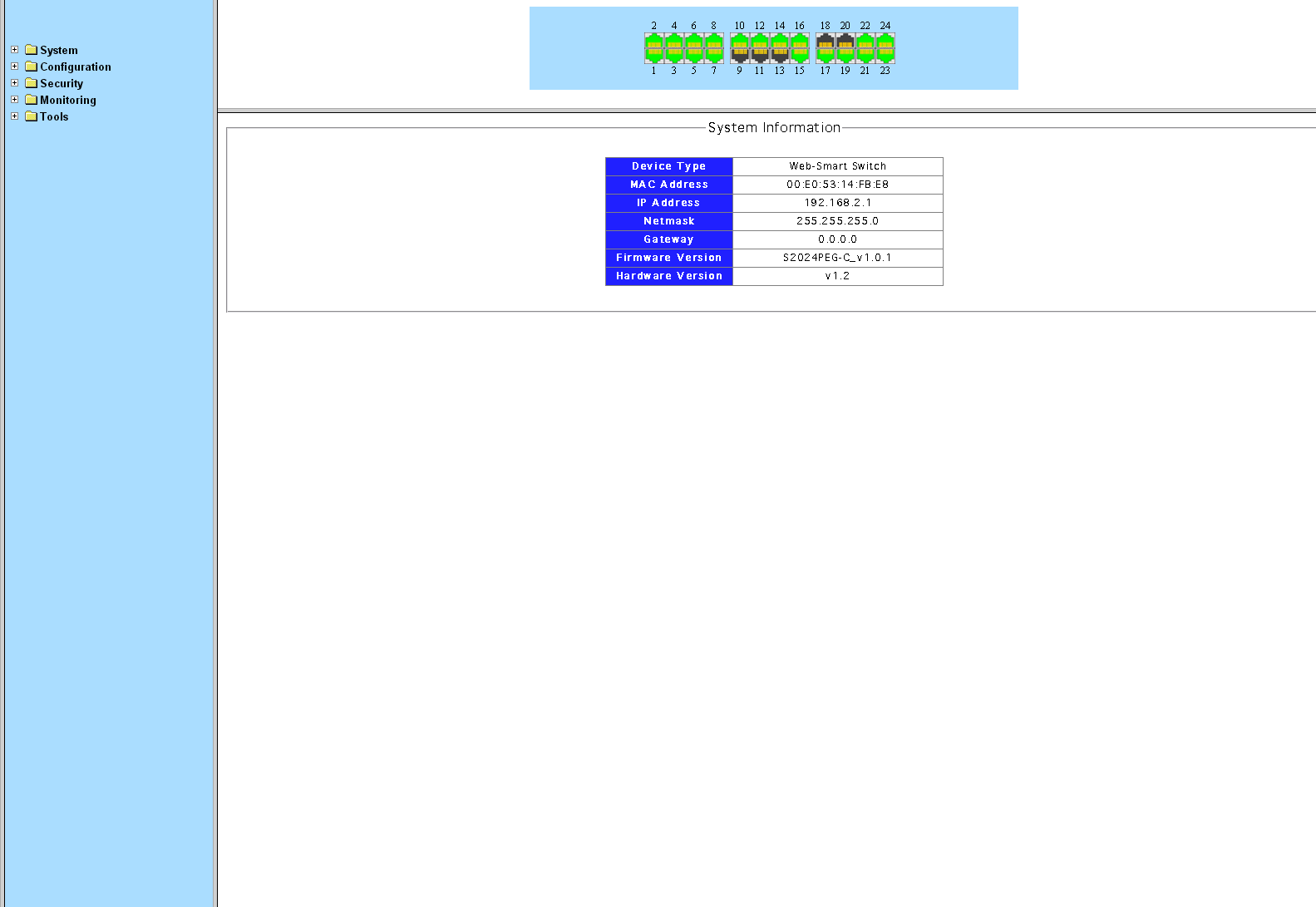

System

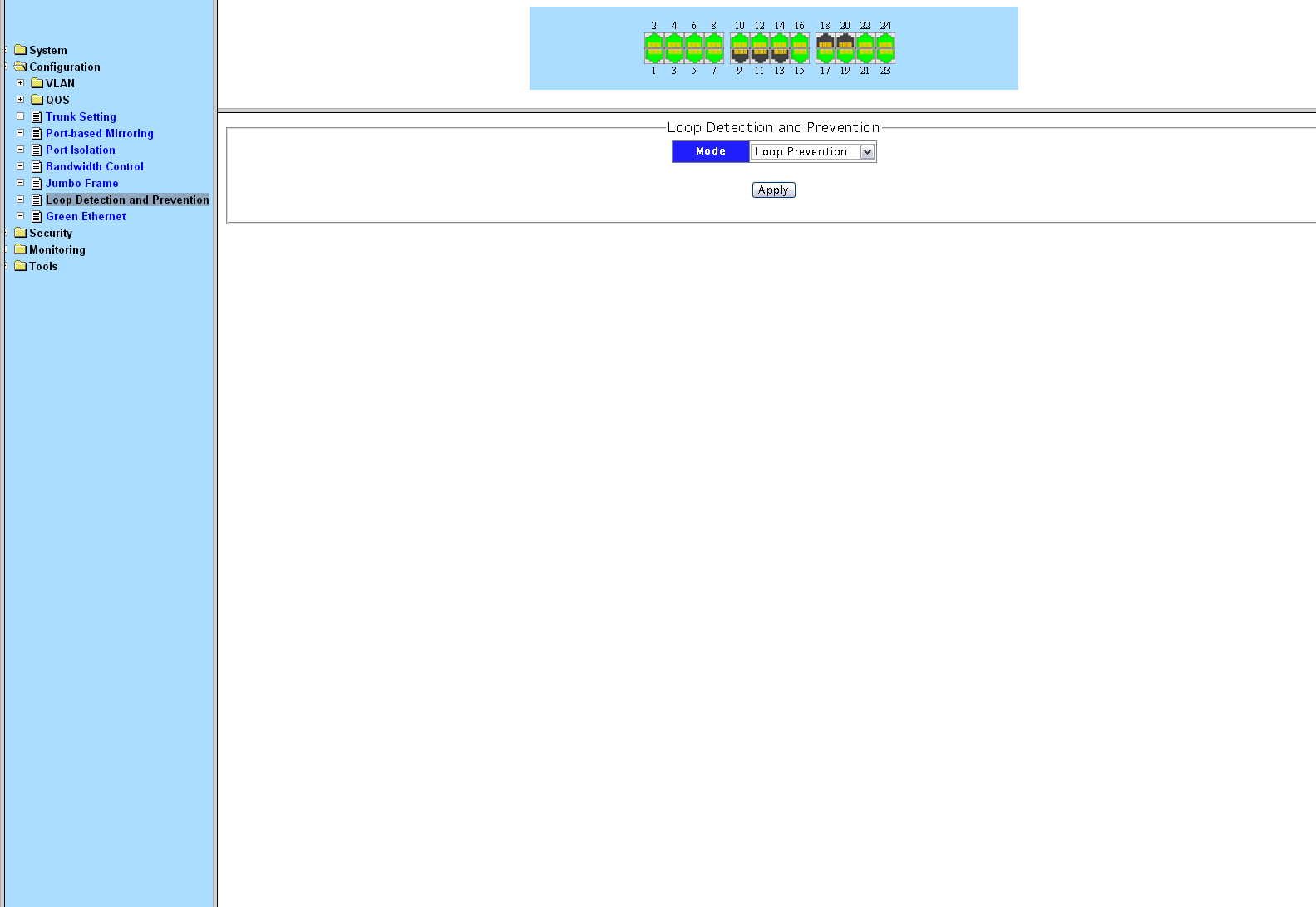

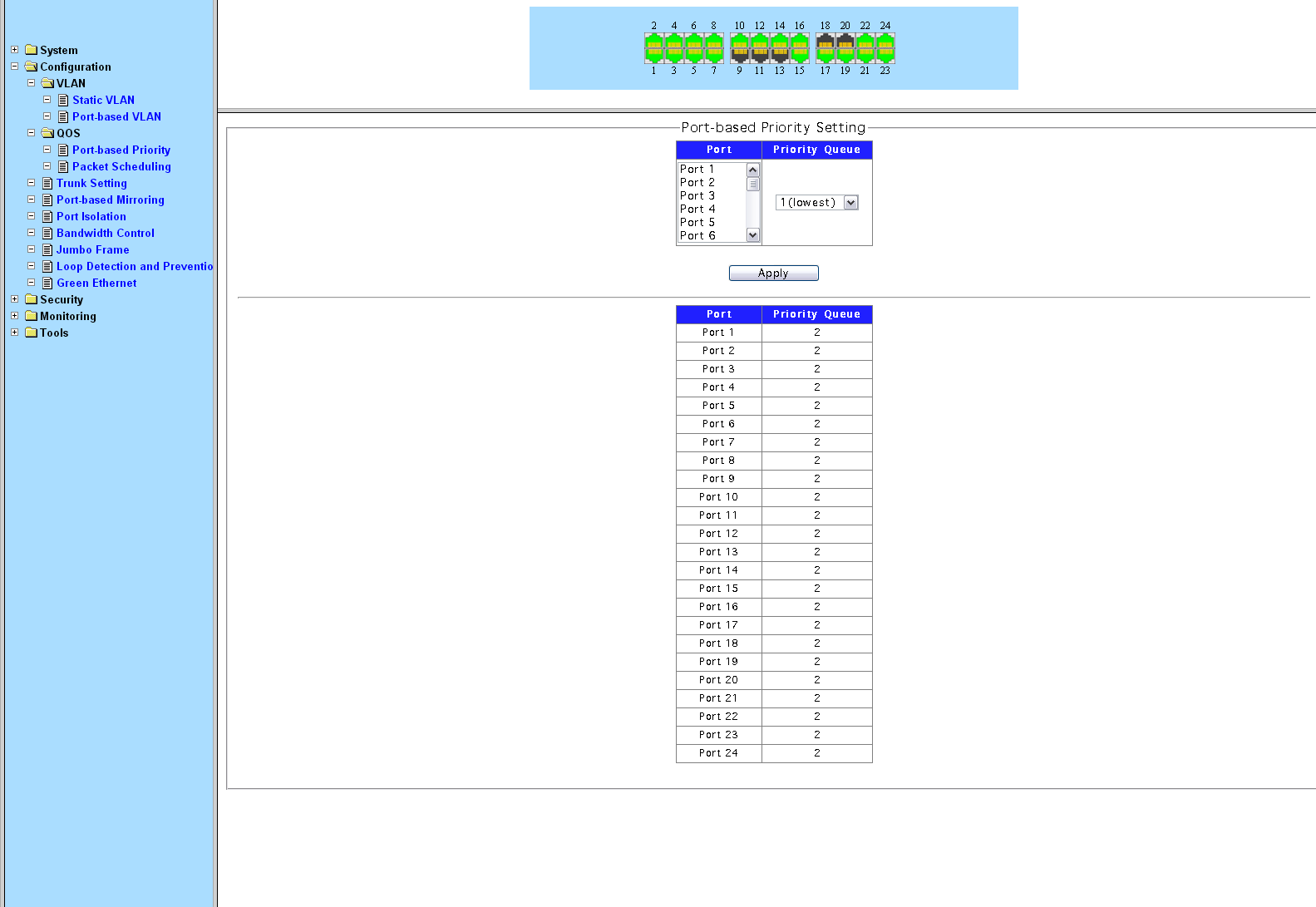

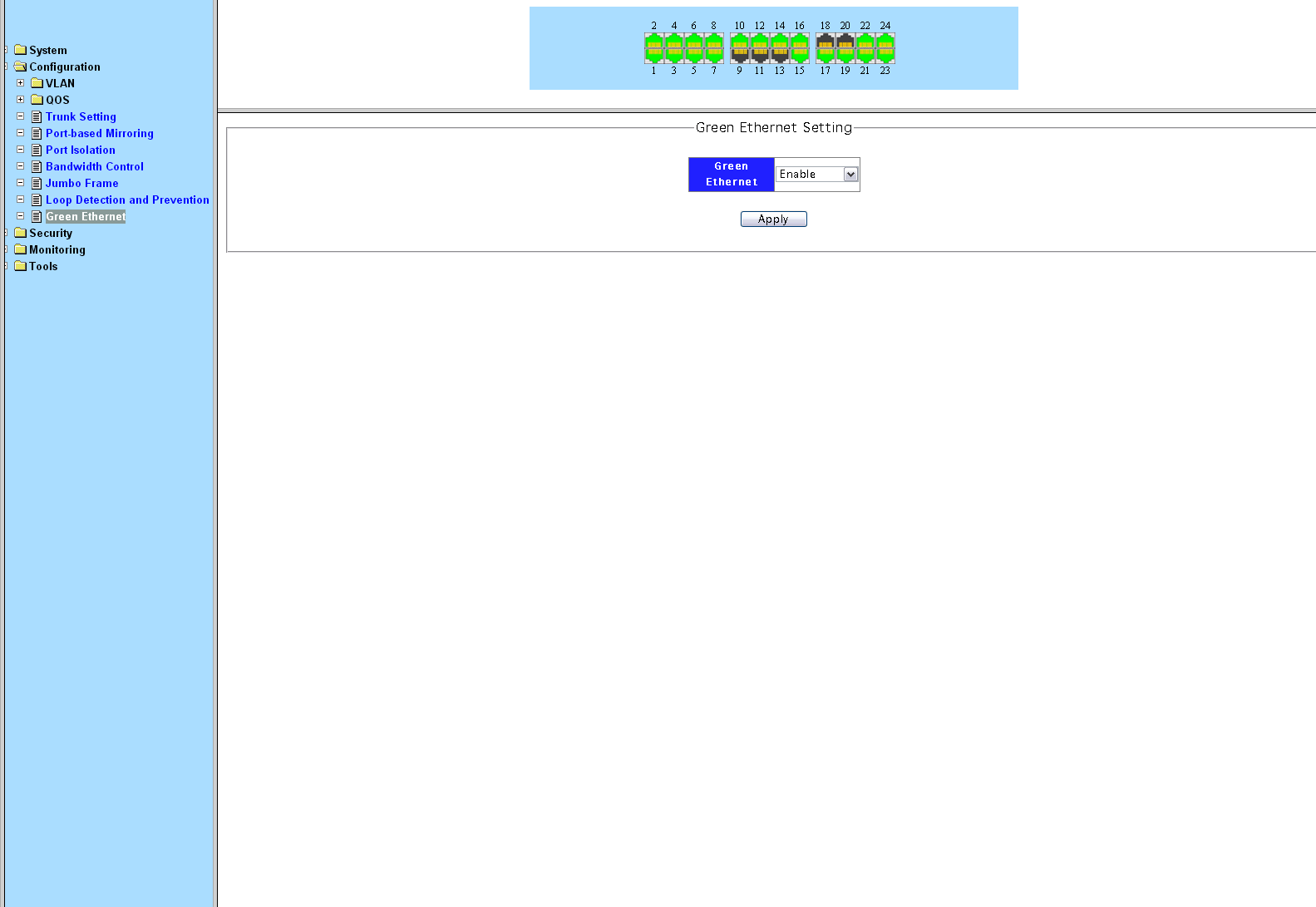

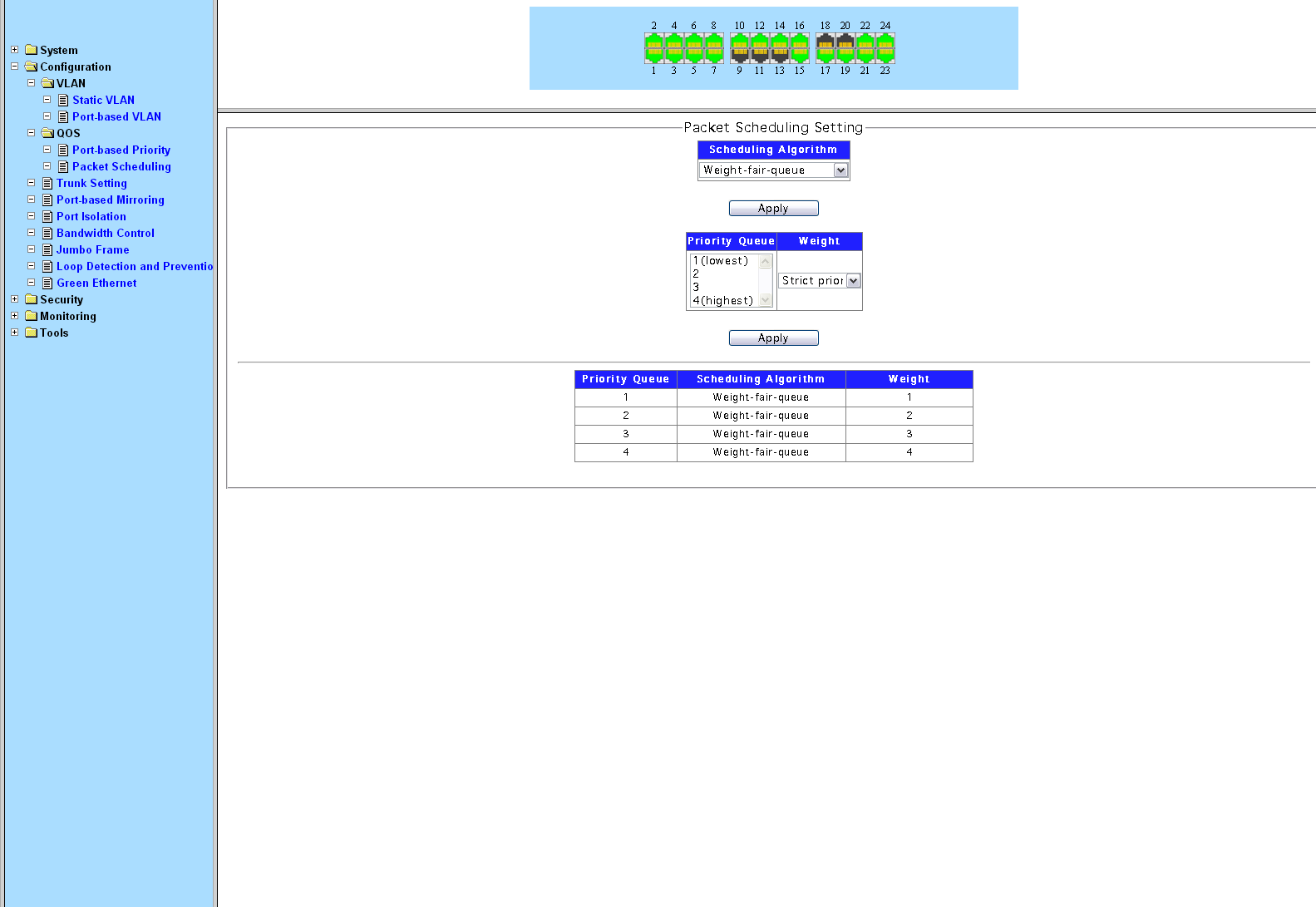

Configuration

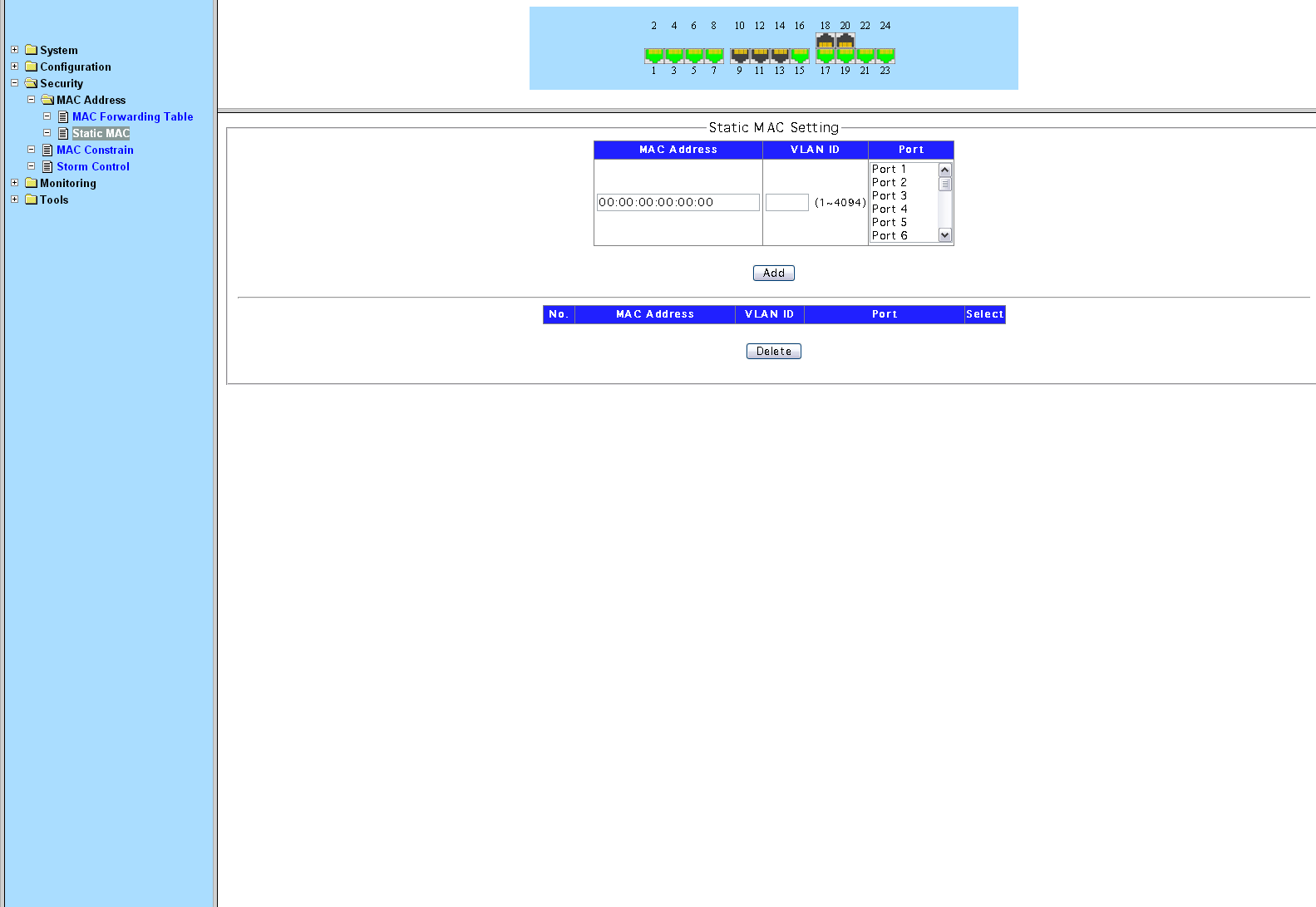

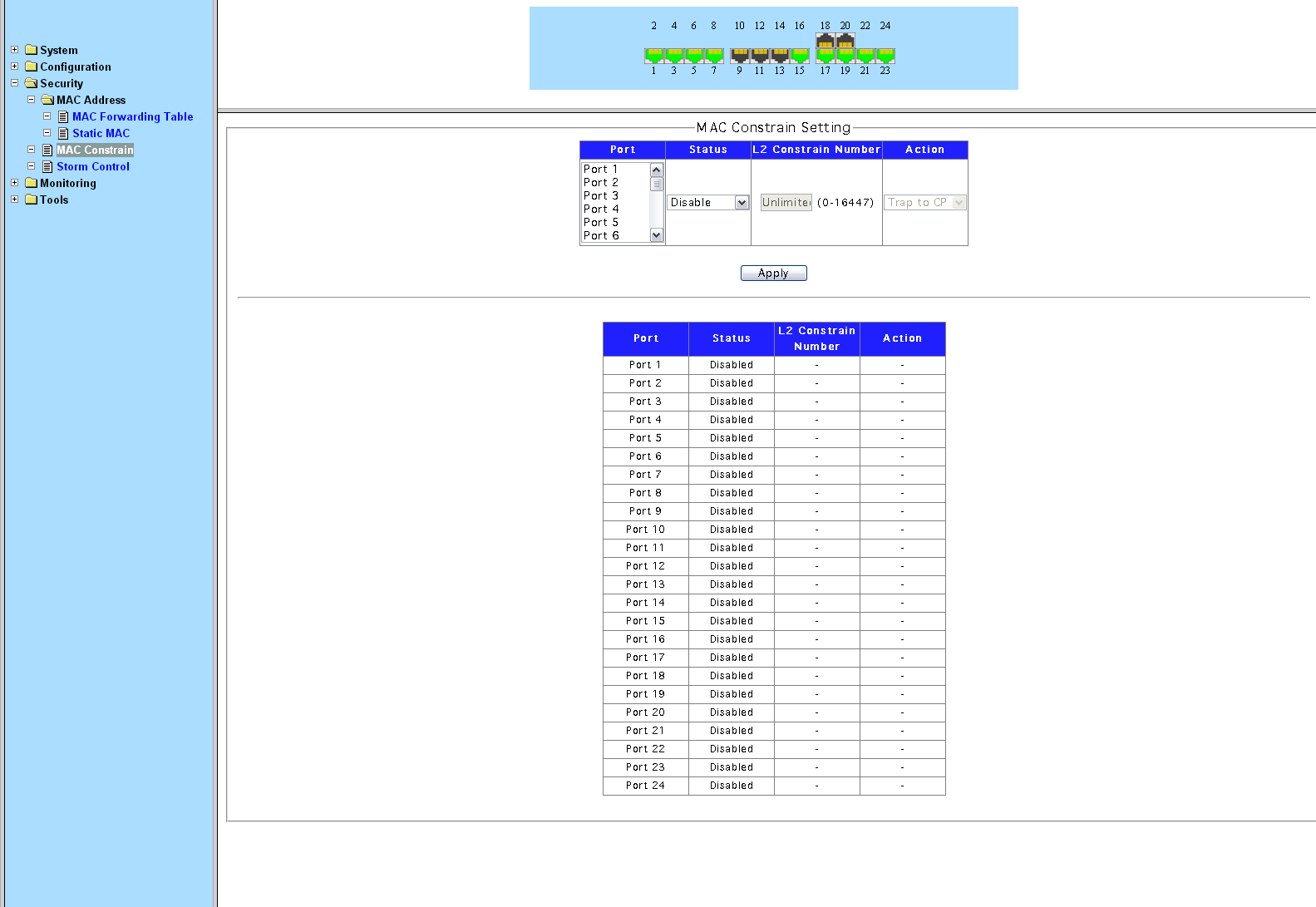

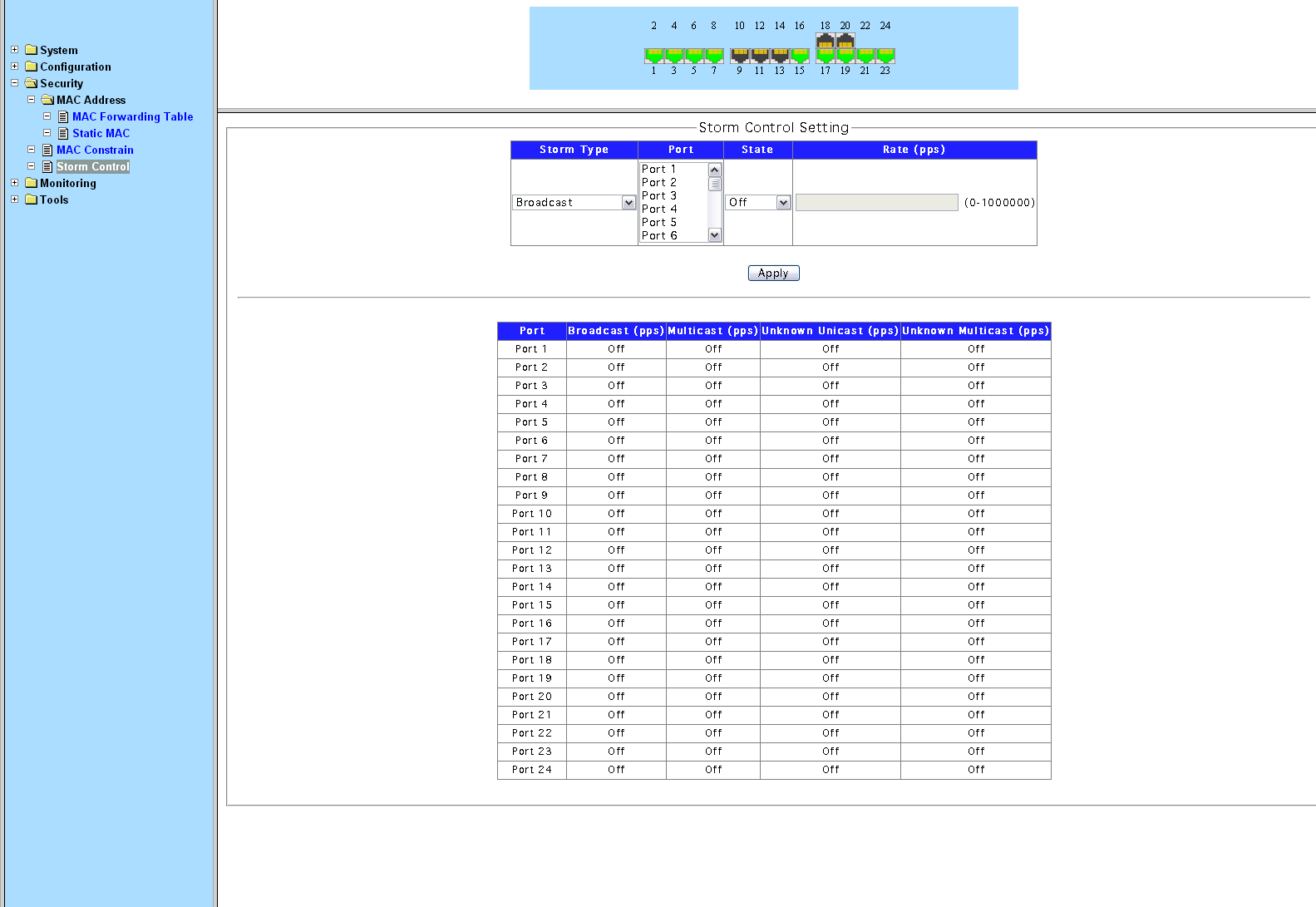

Security

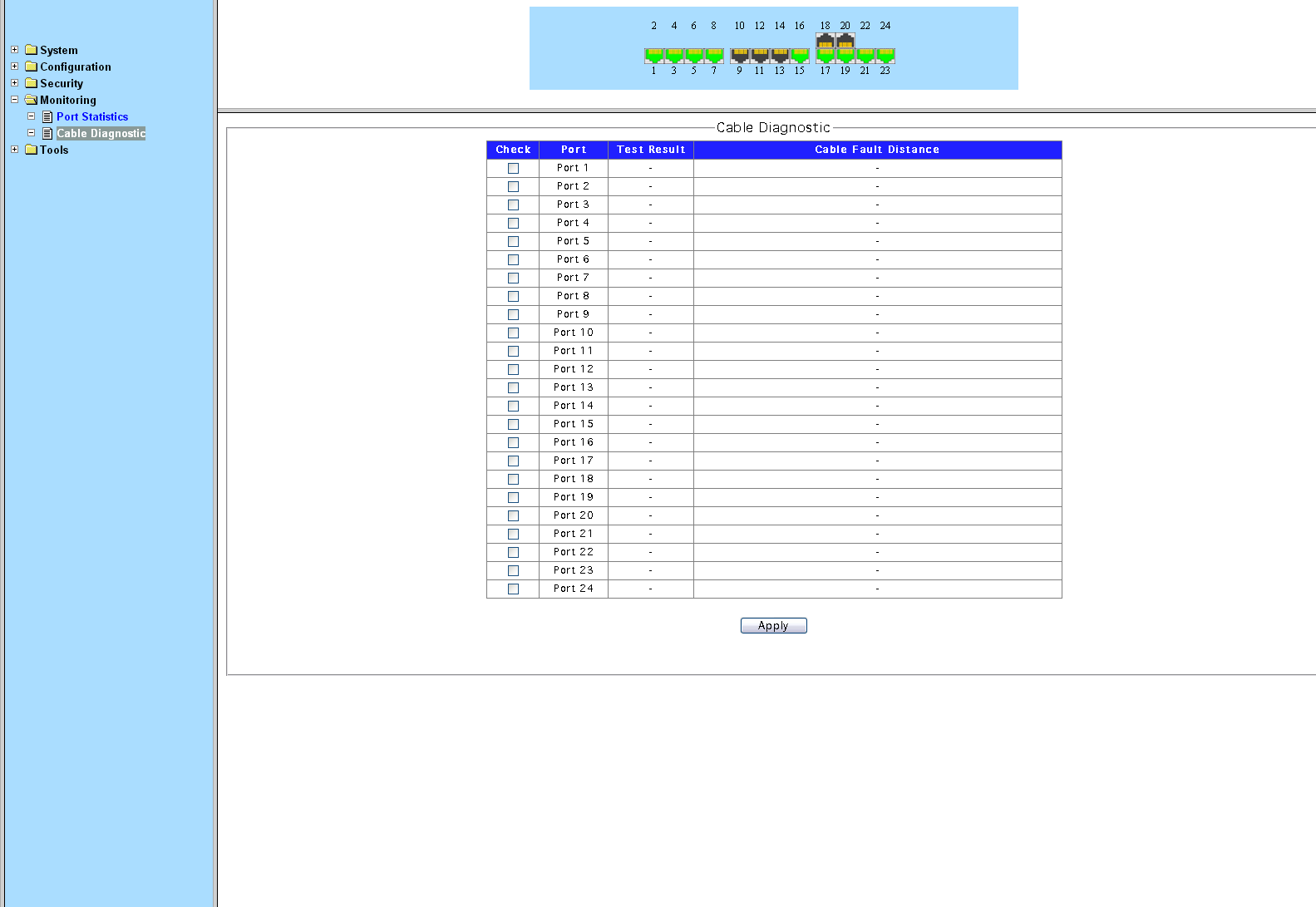

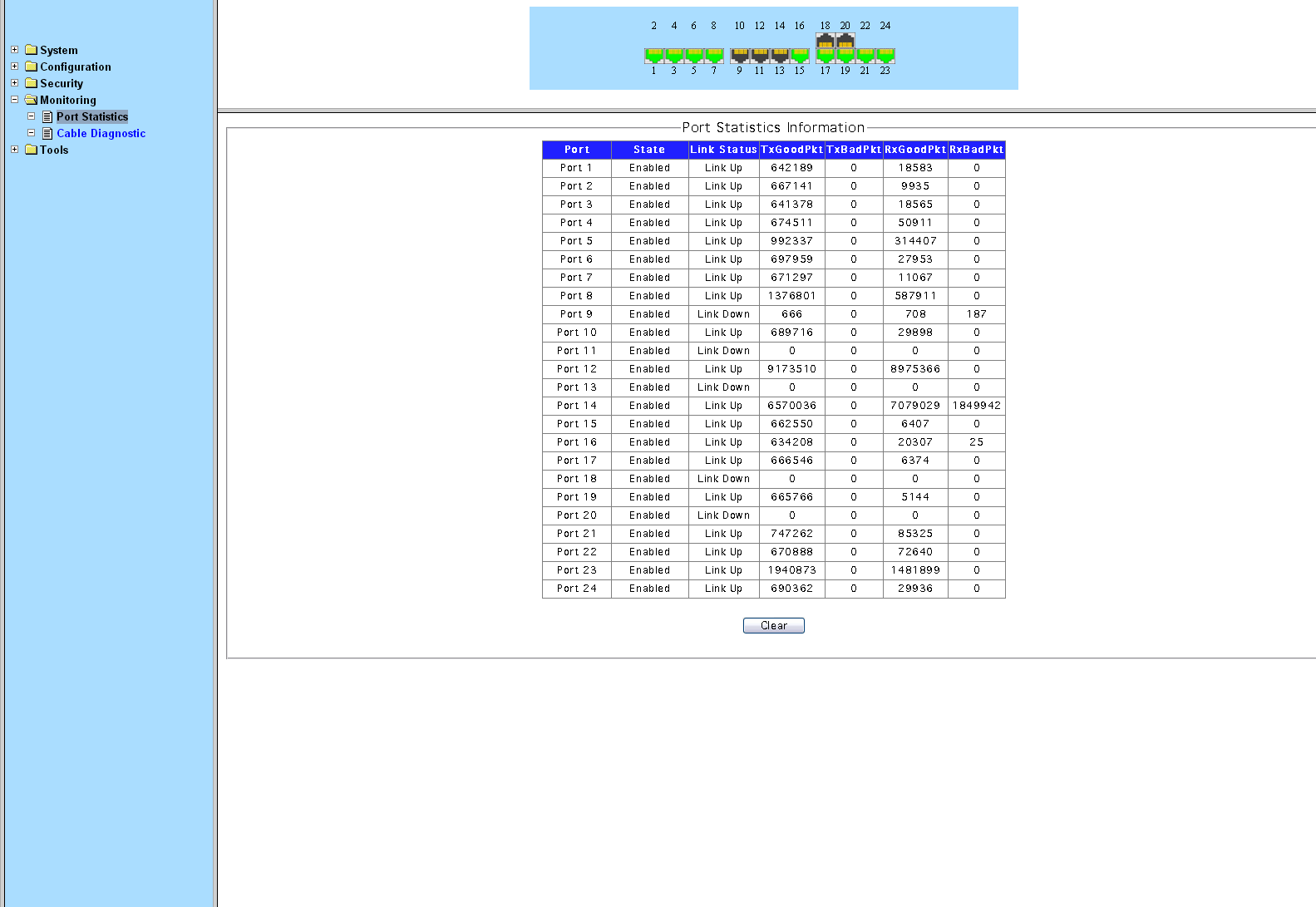

Monitoring

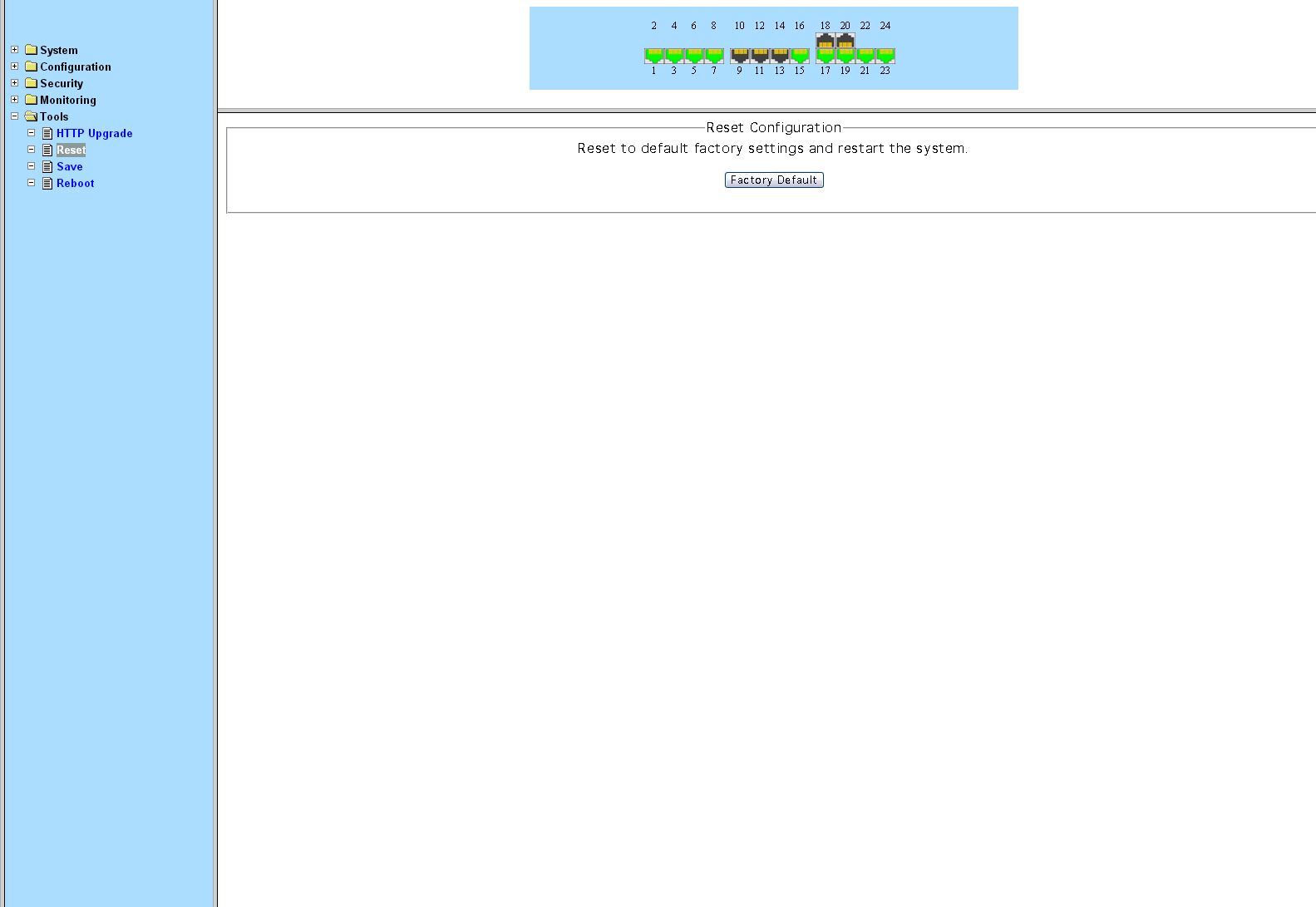

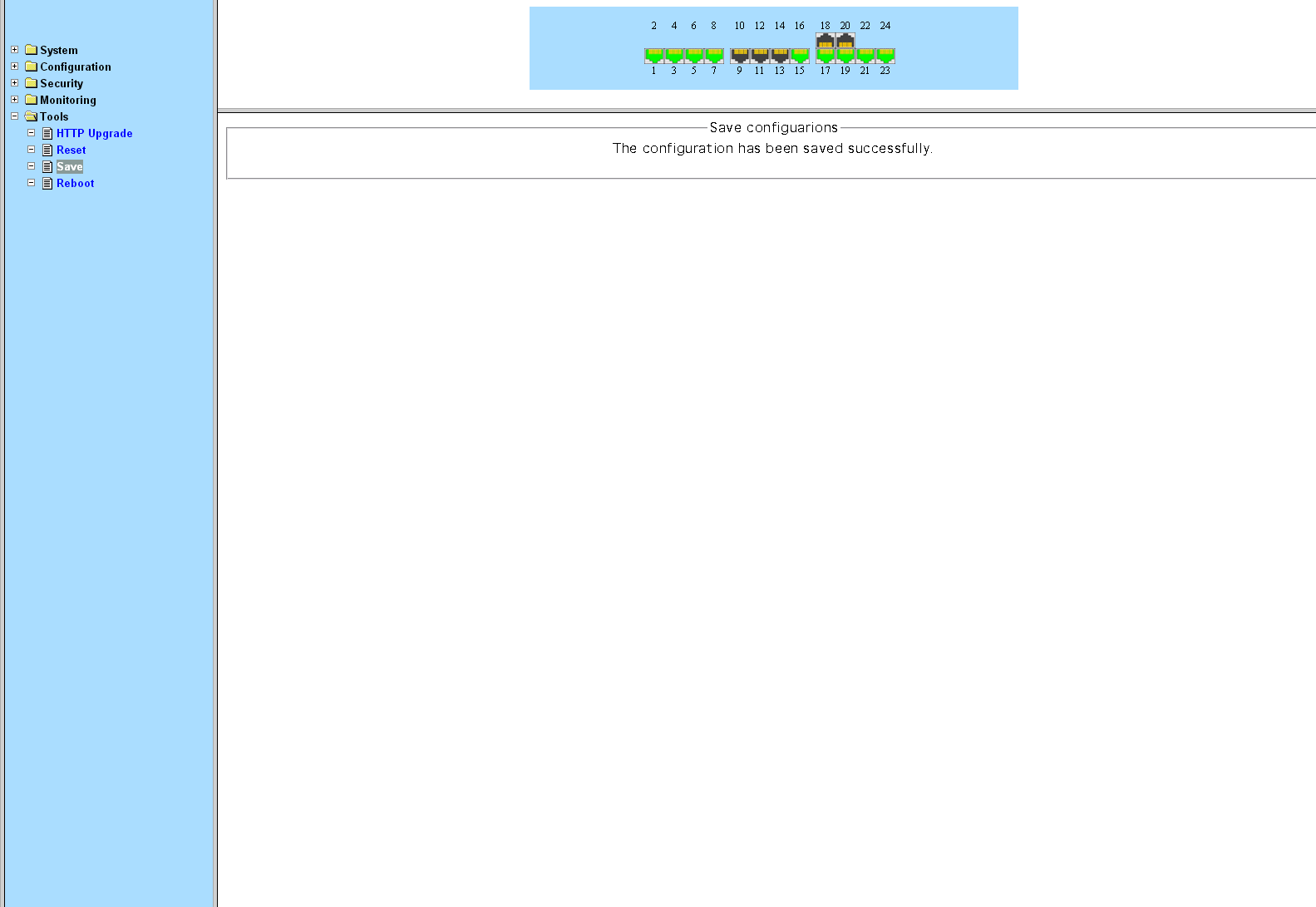

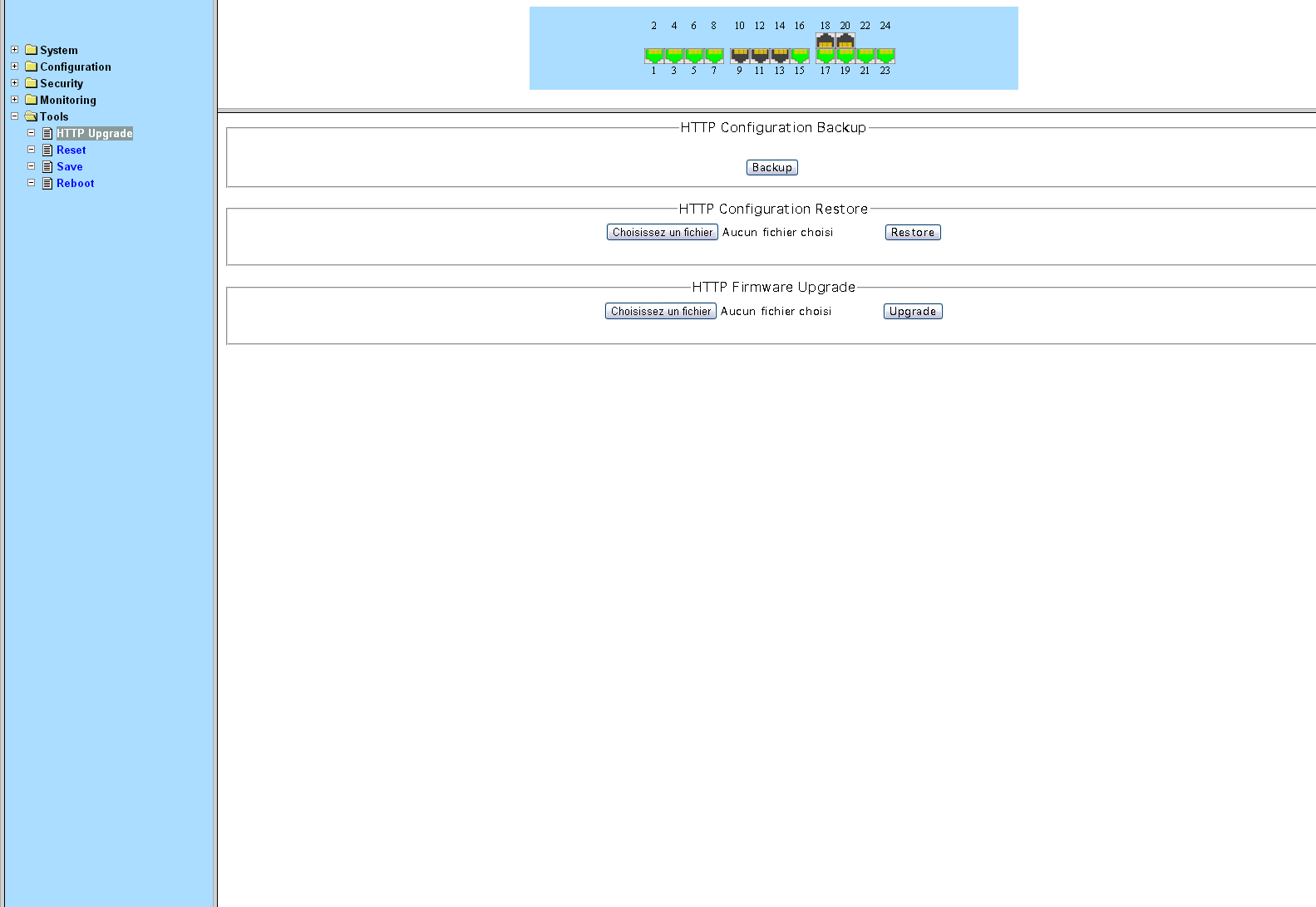

Tools
