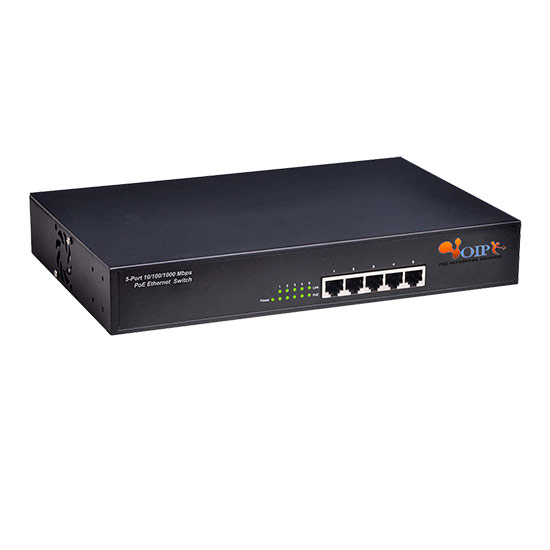

VoIP VM-S1005PEG-C - 5-port 10/100/1000M unmanaged 4 Port support PoE Switch in Metal case(75W Power)

Chargement...Chargement...
-39%
5-port 10/100/1000M unmanaged 4 Port support PoE Switch in  Metal case(75W Power) FR-S1005PEG-C
VM-S1005PEG-C 5-port 10/100/1000M Desktop POE Switch provides the seamless network connection. These POE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs).

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • 5-port 10/100/1000M unmanaged 4 Port support PoE Switch in  Metal case(75W Power) FR-S1005PEG-C

FICHE TECHNIQUE


Description

VM-S1005PEG-C 5-port 10/100/1000M Desktop POE Switch provides the seamless network connection. These POE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
VM-S1005PEG-C is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the 5-port 10/100/1000M Desktop POE Switch is a great selection for expanding your home or office network.


Features


  • 5 × 10/100/1000Mbps Auto-negotiation Fast Ethernet RJ45 ports with 4 port PoE function (port1-port4)
  • h Supports PoE power up to 26W for each PoE port
  • Supports All power up to 75W
  • Supports PoE IEEE802.3af and IEEE802.3at compliant Powered Device (PD)
  • Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 8K entry MAC address table of the FR-S1005PEG with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity, POE, POE MAX
  • Internal power adapter supply.


SPECIFICATIONS
VM-S1005PEG-C
Chipset
RTL8367
Standards
IIEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Network Media (Cable)
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
Number of Ports
5 x 10/100/1000Mbps Auto-Negotiation ports
Switching Capacity
10G
LED indicators
10/100/1000M
Link/ACT
POE
POE, POE MAX
Other
Power
Transfer Method
Store-and-Forward
PoE Power on RJ-45
Power+: ping1 & ping 2
Power-: ping 3 & ping 6
MAC Address Learning
Automatically learning, automatically Update
Frame Filtering and Forward Rate
10Mbps: 14880pps,
100Mbps: 148810pps                         1000Mbps: 1488100pps
Dimensions (L × W × H)
280*179*44.5mm
Environment
Operating Temperature: 0℃~40℃
Storage Temperature: -10℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing
