UT104TP UT104TP

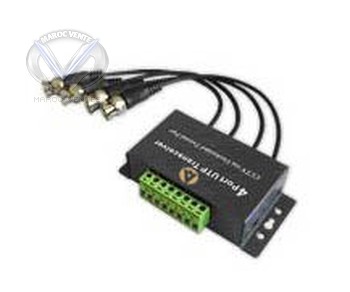

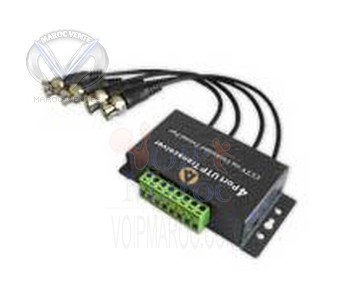

UT104TP,Video transmission via UTP CAT5 cable. Over 10-20% wire costs saved. Full-motion CCTV video at distances up to 2000ft B/W(600m), 1500ft Color (400m) Building video filter and loop termination circuit,

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • UT104TP UT104TP

FICHE TECHNIQUE

CARACTERISTIQUE TECHNIQUE
Attenuation DC to 5 Mhz: 1.5 dB max
Common-mode rejection 15KHz to 5 Mhz: 60 dB typ
Impedance Coax Cable, Femal or Male BNC:75 ohms
UTP, Screw Terminals, RJ45 socket: 100 ohms
Wire Type Network Wiring: One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) per signal
Category Type: Cat 2 or better
Impedance: 100 ± 20 ohms
DC Loop Resistance: 26 ohms max
Differential Capacitance: 19 pF/ft max
Wire Length, camera to monitor including coax, 1,000 ft (300 m), can be up to 2000ft max (600m) B/W signal
Connector Interfaces Video: Male BNC connectors with 4 180mm coxial cables
Network Interface: 8 Screw Terminals for UTP pair cable
Environmental Temperature: 0 to +50° C
Humidity (non-condensing): 0 to 95%
ESD Susceptibility (200 pf probe) : 20 KV
Mechanical Dimensions: 103X60X25mm:
Material: Metal housing case
Mounting: No needed
Package: Paper Box
