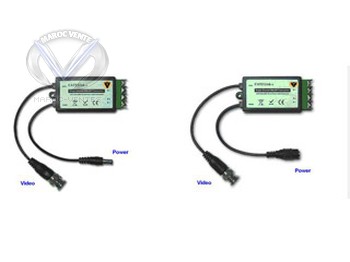

UT102PV UT102PV
UT102PV,Big terminal screw block for CAT5 cable, solid connection than unsolidified RJ45 Jack Direct screw connection instead of complex CAT5 cable to RJ45 connector building Video and power transmission via one UTP CAT5 cable.

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • UT102PV UT102PV

FICHE TECHNIQUE

CARACTERISTIQUE TECHNIQUE
Attenuation DC to 6 Mhz: 1.5 dB max
Common-mode rejection
Video:15KHz to 5 Mhz: 60 dB typ
Power:10KHz to 100Khz: 60 dB typ
Return loss rjection Video: Over 18dB @1Mhz
Impedance Coax Cable, Male BNC75 ohms
UTP, Screw Terminals 100 ohms
Wire Type Network Wiring: One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) per signal
Category Type: Cat 2 or better
Impedance: 100 ± 20 ohms
DC Loop Resistance: 26 ohms max
Differential Capacitance: 19 pF/ft max
Wire Length: Camera to monitor including coax, 1,000 ft (300m) , up to 2000ft max (600m) B/W signal
Connector Interfaces Video: Male BNC connector with 120mm coxial cable
Power: Male/Female power connectors with 120mm cable (UT102PV-M UT102PV-F)
Network Interface: 2 screw terminals for one UTP pair video and 2 screw terminals for 3 UTP pair power cables
Environmental Temperature: 0 to +50°C
Humidity (non-condensing): 0 to 95%
ESD Susceptibility (200 pf probe) : 20 KV
Mechanical Dimensions: 85*38*22mm with 120mm coxial and power female/male cable
Weight: 90g
Material: Black ABS
Mounting: No needed
Package: Paper Box
