Visio KD-616 - DVR with 16CH M-JEPG

Chargement...Chargement...
-0%

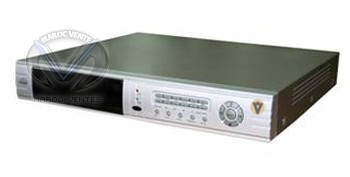

16CH M-JEPG Economic DVR KD-616
DVR with 16CH M-JEPG,MJPEG compression Available in NTSC & PAL system Selectable recording modes: 24hrs. continuous motion detection & sensor triggered with pre-alarm watermark Configurable recording picture quality resolution & frame rate

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • 16CH M-JEPG Economic DVR KD-616


FICHE TECHNIQUE

Description du produit
Model

  KD-616

Compression Format

  Motion JPEG

Video Output

  BNC 2-channel, S-Video 1-channel

Video Input

  BNC 16-channelv

Display Resolution

  NTSC: 720×480    PAL: 720×576

Recording Resolution

  NTSC: 720×240 / 360×240    PAL: 720×288 / 360×288

Display Frame Rate NTSC

  480fps / 16×30fps

PAL

  400fps / 16×25fps

Record Frame NTSC

  Max.120fps / 16×7.5fps

 Rate PAL

  Max.100fps/16×6.25fps

Audio Input

  -8dB --- 22k, RCA×4

Audio Output

  -8dB --- 92dB, RCA× 2

Sensor Input

  NO or NC, 16-channel

Relay Alarm Output

  NO or NC, 1-channel

Recording Mode

  24 hrs.×7 days schedule, motion detection, sensor or network triggered

Simplex/Duplex/Triplex

  Triplex

Network Interface

  RJ45 for LAN & Internet

VGA  Output

  Optional

PTZ Control

  RS485, 4 protocols (PELCO-D, PELCO-P, NEON&SAMSUNG) supported

HDD Capacity   Default: One removable caddy + one fixed rack

  Option:  One CD-RW+ one fixed rack

Remote

  Included

Power

  DC12V/ 5A (Adaptor Supply)

Storage   -20~65? / 20~95%RH
Operation

  -5~50? / 20~85%RH

Dimension ( Lx Wx H )

  430x385x65mm
