Dialogic 306-385 - Carte Diva Server UM Analog-2P - Voix, Data, Fax PCI

Chargement...

-23%

Carte Diva Server UM Analog-2P - Voix, Data, Fax PCI 306-385

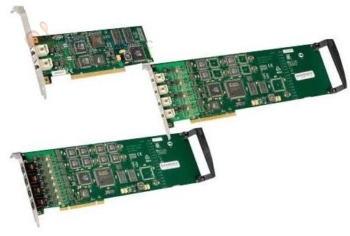

The Dialogic Diva UM-Analog Media Boards provide two, four, and eight ports and serve as an excellent communication platform, which scales from 2 to 64 channels (phone lines) per single server. The Diva UM-Analog Media Boards offer voice, speech, conferen

Ce produit n'est plus proposé à la vente

Disponibilité : Obsolète (Fin de vie)

Evaluation :

Evaluer ce produit.

Description
Avis des clients

FICHE TECHNIQUE

General Information
Product Name	Diva UM 306-385 Voice Board
Marketing Information	The Dialogic Diva UM-Analog Media Boards provide two, four, and eight ports and serve as an excellent communication platform, which scales from 2 to 64 channels (phone lines) per single server. The Diva UM-Analog Media Boards offer voice, speech, conferencing, VoIP, modem and fax features, and can serve as a base for many communication applications. The boards are supported by most standard applications, and are also suitable for new application development. Diva UM-Analog Media Boards are available in Low Profile, Half Size, or Full Size form factors and are available in both PCI and PCI Express (PCIe) versions. Diva UM-Analog can be seamlessly combined with other Dialogic Diva Media Boards, such as E1/T1, ISDN PRI/BRI, and VoIP.
Product Type	Voice Board
Technical Information
Processor	100 MHz -32-Bit RISC, 131 MIPS
Digital Signal Processing	32.76 MHz - 65 MIPS
Interfaces/Ports
Host Interface	66 MHz PCIU
Telephony Connector	2 x RJ-11
Management & Protocols
Voice Codec	G.711
	G.726
	G.729
	GSM
Memory
Standard Memory	16 MB SDRAM
Physical Characteristics
Form Factor	PCI
Miscellaneous
Package Contents:	Diva UM 306-385 Voice Board LP Bracket
Additional Information:	Up to Eight Diva Media Boards per single server Sophisticated hardware design Comfort Noise Generation (CNG) Pulse and tone dialing Loop start signaling 1 x Channel fax (V.34)
Certifications & Standards:	ISO 9002
Green Compliance	Yes
Green Compliance Certificate/Authority	RoHS
