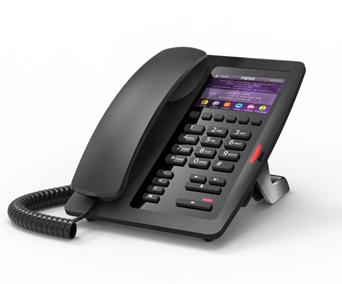

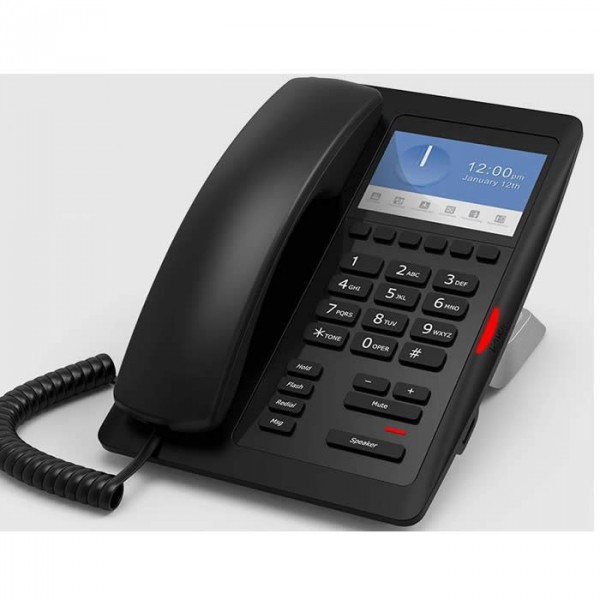

Fanvil H5 - Telephone IP pour Hotel écran Couleur Rétro-Eclairé 2 Lignes de SIP PoE

Telephone IP Ecran Rétro-Eclairé  2 Lignes de SIP X3/X3P

Prix Normal : 2 999,00 Dh HT

Votre Prix :1 399,00 Dh HT

1 678,80 Dh TTC

Economie : 1 600,00 Dh - 53%

Telephone IP pour Hotel ou Riad a 2 Lignes de SIP PoE et écran Couleur 3.5" Rétro-Eclairé avec 10 buttons programmable pour les différents extension. Comme Front Desk, Room Service, Maintenance etc...

Disponibilité : Sur commande
Evaluation :
  • Telephone IP Ecran Rétro-Eclairé  2 Lignes de SIP X3/X3P
  • /images/Products/H5-1_bccb924e-2b88-4b09-b96f-45da3af624fe.jpg
  • /images/Products/H5-4_757f8da7-3aa8-4e0e-b337-eb8e0e03921d.jpg
  • /images/Products/H5-2_ebf77e86-e03b-416f-b364-b36be82989a9.jpg
  • /images/Products/H5-5_2236cbc3-1d3a-40cc-a269-ddde6c7fcf8c.jpg

Description du Produit

Telephone IP pour Hotel ou Riad a 2 Lignes de SIP PoE et écran Couleur 3.5" Rétro-Eclairé avec 10 buttons programmable pour les différents extension. Comme Front Desk, Room Service, Maintenance etc...

H Series is Fanvil’s new series phone designed for hotels. Its fashion and scientific appearance, excellent voice quality and powerful function with matching integrated communication platforms can replace traditional phone and become a new generation of intelligent terminal equipment. H Series hotel IP phone can satisfy most hotel rooms and even the application requirements, besides, it has good expansibility and clear characteristics of quality calls.

H3 & H5 accomplished the powerful telephony features by cooperating with the communications platform, such as call transfer, hotline, voice mail, call hold, etc. H3 & H5 IP phones support defined 6 programmable keys, and it can define according to the hotel different needs, such as hotel all kind of equipment service hotline (housekeeping, ticketing, switchboard, food and beverage, etc.), the hotel special features (alarm clock, voice mail, etc.), besides, it also has a USB port to charge your mobile

phone. H2 is special designed for hotel bathroom, business hall and other service places, which is an easy operational and wall-mountable phone.
Key Features
 10 Soft keys programmable
 Multi languages displayed(web)

 3.5 inch 480x320) color-screen
 2 SIP Lines
  HD Voice
 1 USB Port for phone charging
 10 Soft keys programmable
 Call hold, Redial, Transfer, Release, MWI
 Configurable dial plan
• Compatible with major platforms: Broadsoft, 3CX, Asterisk, Elastix, Zycoo etc
 Industrial Standard Certifications: CE/FCC

Call Features
 • Call out / answer / reject
 • Mute / Unmute (microphone)
 • Call Hold / Resume
 • Call Waiting
 • Intercom
 • Caller ID Display
 • Call Forwarding (Always/Busy/No Answer)
 • Call Transfer (Attended/Unattended)
 • Call Parking/Pick-up (depending on server)
 • Redial
 • Do-Not-Disturb (per line / per phone)
 • Auto-Answering (per line)
 • Voice Message (on server)
 • Local 3-way Conference
 • Hot Line

Phone Features
• Vxworks OS
• Support SIP2.0 (RFC3261) and correlative RFCs
• SIP support 2 SIP servers, and backup SIP proxy servers
• Supports SIP UDP / TCP/ TLS
• SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer / IP Call

• HD voice: HD handset
• Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32
• DTMF: In-band, RFC 2833 and SIP INFO
• Full duplex hands- free speaker phone with acoustic echo cancellation
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Background noise suppression
• Adaptive jitter buffers
• Packet loss concealment
• Mute

Advanced Features
• Call transfer ( unattended/ attended/ semi-attended )
• Call holding
• Call waiting
• 3 way call conference
• Capable of 2 way conversation
• Join call
• Call pickup
• Call park
• Redial
• Call back
• Call completion
• Hot desking
• Auto redial
• Predial
• SIP messaging , MWI
• Flexible dial plan
• Barring function for outgoing calls
• Do not disturb
• Auto answer
• CLIR(rejects anonymous calls)
• CLIP(to make an anonymous call)
• Dial without registration
• Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records(Web)
• Phonebook 500 records(Web)
• Speed Dial (abbreviated dialing)
• Hotline/Warm-line
• Black List/ White List
• Intercom/Intercom barge
• Password dial, DTMF hidden
• Action URL/ active URI
• Voice codec setting for each SIP line
• Multicast • LDAP, XML phonebook
• Web dial
• Keypad lock, Emergency call
Network features
• WAN / LAN:10/100M Ethernet ports
• Bridge mode and route
• PPPoE for xDSL
• 802.3af POE • VLAN(Voice VLAN/Data VLAN)
• 802.1X
• NAT transverse :Support STUN client
• DHCP client on WAN/ DHCP server on LAN
• Main DNS and secondary DNS server
 DNS Relay
• SNTP Client
• Firewall and DMZ
• VPN(L2TP/Open VPN)
Deployment & Maintenance
• WEB and telnet management
• Management with different account right
• Recover firmware and factory reset through POST mode
• Upgrade firmware via HTTP, HTTPS, FTP, TFTP
• DHCP option66 and custom option for auto provisioning
• Auto Provisioning to upgrade configuration file with AES(256) encryption
• TR-069 and Syslog

Physical Specifications
• Adapter Input: AC 100-240V
• Adapter Output: DC 5V/1A • WAN Port -10/100 BASE-T RJ-45 for LAN • LAN Port-10/100 BASE-T RJ-45 for PC
• Power consumption: IDLE: 2.5W Active: 2.8W
•  Operation Temperature: 0〜40℃
• Relative Humidity: 10〜65%
• Main Chipset : Broadcom
• SDRAM: 16MB
• Dimension: 235x170x130mm

Nbr, de lignes2
Ports Ethernet2
Module d'extensionNon
Interface CasqueNon
Ecran rétroéclairéOui
Répertoire n°500
Support MWIOui
Provisioning MethodHTTP, WEB GUI
Garanti1 ans


iconFanvil H Hotel phone.pdfTélécharger
