Pack 4 - IPBX Asterisk a 2 Lignes avec 4 Postes IP

Chargement...Chargement...
-59%
IPBX Asterisk a 2 Lignes avec 4 Postes IP
IPBX Asterisk avec 2 FXO (2 Lignes Fixe RTC) et 4 Postes IP un poste pour le standard avec 6 BLF et 3 postes a telephone avec LCD couleur pour de direction.. Le système peux allez jusqu'a 30 Postes.

Ce produit n'est plus proposé à la vente
Disponibilité : Nous consulter sur mv.ma
Evaluation :
  • IPBX Asterisk a 2 Lignes avec 4 Postes IP
  • /images/products/U20.jpg
  • /Images/1461568520.jpg
  • /Images/X4SP.jpg
  • /Images/Products/fanvil-x4-01_be4327ad-3ac3-4da3-afd6-0408ac0e668e.jpg
  • /Images/4.jpg
  • /images/Products/x3sp_9f24c379-fda0-424f-82b9-7556065638bf.jpg
  • /Images/1.jpg
  • /Images/x1.jpg
  • /Images/6.jpg

Fiche Technique CooVox-U20 V2


Description
CooVox-U20 Version 2 IP Phone system is the second generation of Mini IP Phone system released from ZYCOO, meanwhile it's the first Mobile IP Phone system with the ability to use the GSM or UMTS (3G) module to connect to the mobile network for data transport.CooVox-U20 is a next-generation smart IP PBX system designed and optimized for today's business telecommunication needs.CooVox-U20 is an affordable, scalable, interoperable, secure and reliable solution which not only provides traditional PBX functions such as automated attendant and voicemail, but also many advanced features including remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features.


SPECIFICATIONS
Up to 15 Concurrent Calls
Up to 20 Conferences
Up to 30 IP Phone Registers/Extensions
Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)

Codecs & Protocols

Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/ G.726/G.729/GSM/SPEEX
Video Codecs: H.261/H.263/H.263+/H.264
Protocols: SIP (RFC3261)/IAX2
DTMF: RFC2833/SIP INFO/In-Band

Network Features

DDNS Client
DHCP Server
IPv4/IPv6/IEEE802.1Q
IP Assignment (PPPoE/DHCP/Static)
SNMP v1/v2
TR069
Static Route Table
Trouble Shooting (Ping/Traceroute)
VPN Client (N2N/L2TP/PPTP/OpenVPN/IPSec)
VPN Server (PPTP/L2TP/OpenVPN/IPSec)

Security Features

Refuse SIP Register DoS
Refuse Abort Invite DoS
Refuse SSH Login DoS

Logs

PBX Log
Web Access Log
PBX Debug Log

Interface

1 Reset Button
1 Power Interface
1 Ethernet Interface
2 Analog Ports (FXO/FXS)
1 USB 2.0 Interface for Storage
1 Console Port


Hardware
Processor: DualCore A7(1GHz)
SDRAM: DDR3 512MB
Storage: 8GB SD Card (Industry Standard)
Power Supply: Input AC 100~240V, 50/60Hz;
Output DC 12V/1A

System
Asterisk 1.8

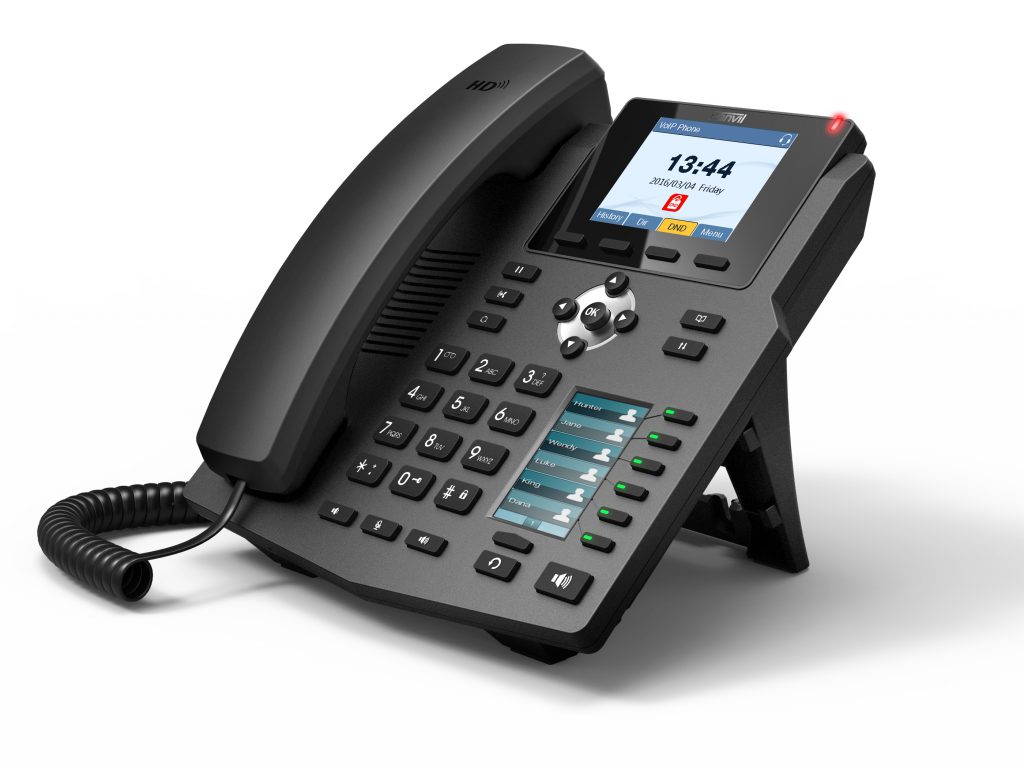

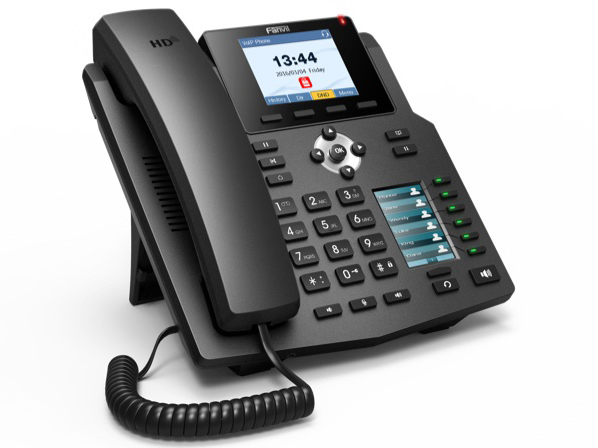

Fiche Technique Fanvil X4


Description du Produit
Téléphone IP X4SG avec Couleur LCD 2.8" avec une clé intelligente DSS-cartographie Couleur LCD pour le marché de l'entreprise. X4 est livré avec des fonctionnalités d'entreprise complets et l'interopérabilité avec les principales plates-formes, comme Asterisk, Broadsoft, 3CX, Elastix, etc.

Le DSS-clé cartographie LCD est conçu avec intelligence pour soutenir l'utilisation dynamique de remplacer les modules d'extension. Il y a 8 touches DSS correspondent à l'écran LCD de fournir ligne dynamique / DSS / BLF fonctions jusqu'à cinq pages à 30 touches DSS totales virtualisés. L'utilisateur peut configurer / personnaliser chaque touche DSS dans chaque page. Chaque touche DSS a une indication LED de couleurs vert, rouge, et jaune pour refléter l'état de la touche. Il ya aussi un bouton DSS de notification d'événement pour avertir l'utilisateur chaque fois qu'il ya un événement dans un autre page (s). Un bouton page de raccourci est également conçu pour permettre à l'utilisateur de basculer rapidement entre les pages. X4 est le choix le plus économique de bureaux de PME et grandes entreprises superviseurs.

Main Features
• Call out / answer / reject
• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial/Auto-Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking

Specifications
Generic

• 2.8 inch color-screen
• 4 SIP Lines
• HD voice
• Support EHS Headphone
 6 Programmable DSS keysdynamic display support up to 30 programmable keys custom configuration
  POE Enabled
  2 Color LCDs (Main + DSS)
  Handset(HS) / Hands-free(HF) / Headphone(HP) mode
  Intelligent DSS Keys
  Desktop / Wall-mount installation
•  Optional External Power Supply
  Economical and Environmental friendly package
  Industrial Standard Certifications: CE/FCC


Call Features
 Call out / answer / reject
  Mute / Unmute (microphone)
  Call Hold / Resume
  Call Waiting
  Intercom
  Caller ID Display
  Speed Dial
  Anonymous Call (Hide Caller ID)
  Call Forwarding (Always/Busy/No Answer)
  Call Transfer (Attended/Unattended)
  Call Parking/Pick-up (depending on server)
  Redial/Auto-Redial
  Do-Not-Disturb (per line / per phone)
  Auto-Answering (per line)
•  Voice Message (on server)
  Local 3-way Conference
  Hot Line
  Hot-Desking


Phone Features
  Phonebook (500 entries)
  Remote Phonebook (XML/LDAP)
  Call log (300 entries, in/out/missed)
  Black/White List Call Filtering
  Voice Message Waiting Indication (VMWI)
  Programmable DSS/Soft keys
  Network Time Synchronization
  Action URL / Active URI


Audio
  HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  Wideband ADC/DAC 16KHz Sampling
  Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  Wideband CODEC: G.722
  Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  Packet Loss Concealment (PLC)
  Dynamic Adaptive Jitter Buffer up to 300ms
  DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO


Networking
  Physical: 10/100Mbps(X4SP), 10/100/ optionel: 1000Mbps(X4SG) Ethernet, dual bridged port for PC bypass
  IP Configuration: Static / DHCP / PPPoE
  Network Access Control: 802.1x
  VPN: L2TP (Basic Unencrypted) / OpenVPN
  VLAN
  QoS


Protocols
  SIP2.0 over UDP/TCP/TLS
  RTP/RTCP/SRTP
  STUN
  DHCP
  PPPoE
  802.1x
  L2TP (Basic Unencrypted)
  OpenVPN
  SNTP
  FTP/TFTP
  HTTP/HTTPS
  TR069

RFCs: 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976/3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/5865


Deployment & Maintenance
  Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/
  DHCP OPT66/SIP PNP/TR069
  Web Management Portal
  Web-based Packet Dump
  Configuration Export / Import
  Phonebook Import/Export
  Firmware Upgrade
  Syslog


Physical Specifications
  Main LCD x1: 128x64 dot-matrix with backlit
  DSS Key-mapping LCD x1: 64x192 dot-matrix
  Keypad: 38 keys, including:
       4 Soft-keys
       3 Function keys
       4+1 Navigation keys + OK
       12 Standard Phone Digits keys
       3 Volume Control keys, Up/Down/Mute(Microphone)
       1 Hands-free key
       8 DSS Keys with tri-color LED
       1 Page-Switch (PS) key with tri-color LED
       1 Page-Jump/Configuration (PJC) key
  HD Hands-free Speaker (0 ~ 7KHz) x1
  HD Hands-free Microphone (0 ~ 7KHz) x1
  HD Handset (RJ9) x1
  Standard RJ9 Handset Wire x1
  1.5M CAT5 Ethernet Cable x1
  RJ9 Phone Jacket x2: Handset x1, Headphone x1
  RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled),
  PC x1 (Bridged to Network)
  Main Chipset: Broadcom
  DC Power Input: 5V/1A
   Power Consumption: (X4) Idle – ~ 1.1W, Peak – ~1.8W
   (X4G) Idle – ~ 1.55W, Peak – ~2.25W
   Working Temperature: 0 ~ 40℃
   Working Humidity: 10 ~ 65%
   Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
   Color: Black
   Package Dimensions: 285x270x65mm (W x H x L)

Fiche Technique Fanvil X3SP


Description du Produit
The Fanvil X3SP IP Phone is an industrial masterpiece, offering superior user experience and simplicity for home and office users with elegant appearance and intelligent software.

Main Features
 Call out/answer/reject
 Mute / Unmute (microphone)
 Call Hold / Resume
 Call Waiting
 Intercom
 Caller ID Display
 Call Forwarding (Always/Busy/No Answer)
 Call Transfer (Attended/Unattended)
 Call Parking/Pick-up (depending on server)
 Redial
 Do-Not-Disturb (per line / per phone)
 Auto-Answering (per line)
 Voice Message (on server)
 Local 3-way Conference
 Hot Line

Specifications
• 2.4 inch color-screen
• 2 SIP Lines
  HD Voice
• Support EHS Headphone
Compatible with major platforms: Broadsoft, 3CX, Asterisk, Elastix, etc
 User Friendly Graphical Menu with Help description
 POE Enabled (X3SP)
 Handset (HS) / Hands-free (HF) / Headphone (HP) mode
 Desktop / Wall-mount installation
 External Power Supply (X3S)
 Economical and Environmental friendly package
 Industrial Standard Certifications: CE/FCC

Call Features
 Call out / answer / reject
 Mute / Unmute (microphone)
 Call Hold / Resume
 Call Waiting
 Intercom
 Caller ID Display
 Call Forwarding (Always/Busy/No Answer)
 Call Transfer (Attended/Unattended)
 Call Parking/Pick-up (depending on server)
 Redial
 Do-Not-Disturb (per line / per phone)
 Auto-Answering (per line)
 Voice Message (on server)
 Local 3-way Conference
 Hot Line

Phone Features
 Initialization Configuration Wizard
 Up to 5 User Accounts / Profiles with individual phonebook/call log/configurations/PIN
 Phone Accessibility Control by User PIN
 Intelligent Phonebook (up to 500 entries total)
 Cloud Phonebook (XML)
 Intelligent Contact Number Matching / Filtering
 Call log (300 entries total, in/out/missed)
 Call Connection Quality (QoS) Measurement and Indication
 Voice Message Waiting Indication (VMWI)
 Network Time Synchronization

Audio
 HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
 Wideband ADC/DAC 16KHz Sampling
 Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
 Wideband CODEC: G.722
 Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
 Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
 Packet Loss Concealment (PLC)
 Dynamic Adaptive Jitter Buffer up to 300ms
 DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO Networking
 Physical: 10/100 ou x3SG 1000 Mbps Ethernet, dual bridged port for PC bypass
 IP Configuration: Static / DHCP / PPPoE
 Network Access Control: 802.1x
 VPN: L2TP (Basic Unencrypted) / OpenVPN
 VLAN
 QoS

Protocols
 SIP2.0 over UDP/TCP/TLS
 RTP/RTCP/SRTP
 STUN
 DHCP
 PPPoE
 802.1x
 L2TP (Basic Unencrypted)
 OpenVPN
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR069

RFCs:
354/1321/1350/1769/1889/1890/2131/2132/2616/ 2617/2661/2833/2976/3261/3262/3263/3264/3265/ 3268/3311/3489/3711/4346/4566/5630/5865

Deployment & Maintenance
 Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
 Web Management Portal
 Web-based Packet Dump
 Configuration Backup/Restore
 Auto/Manual Online Software Upgrade
 Syslog

Physical Specifications
 LCD x1: 128x48 dot-matrix with backlit
 Keypad: 25 keys, including
      4 Soft-keys
      12 Standard Phone Digits keys
      2 Navigation keys (Up/Down)
      2 Line keys with tri-color LED
      1 Redial / Call Log Key
      3 Volume Control keys, Up/Down/Mute(Microphone)
      1 Hands-free / Headphone key
 HD Hands-free Speaker (0 ~ 7KHz) x1
 HD Hands-free Microphone (0 ~ 7KHz) x1
 HD Handset (RJ9) x1
 Standard RJ9 Handset Wire x1
 1.5M CAT5 Ethernet Cable x1
 RJ9 Phone Jacket x2: Handset x1, Headphone x1
 RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled, X3P only), PC x1 (Bridged to Network)
 Main Chipset: Broadcom
 DC Power Input: 5V/1A
 Power Consumption: Idle – ~ 1.1W, Peak – ~ 1.8W
 Working Temperature: 0 ~ 40℃
 Working Humidity: 10 ~ 65%
 Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
 Color: Black (K) / White (W) / Red (R) / Blue (B) / Yellow (Y)
 Package Dimensions: 275x215x62mm(W x H x L)
