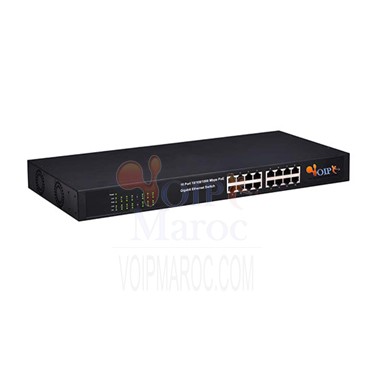

VoIP VM-S1016PEG-C
Menu-
16-port 10/100M/1000M unmanaged 16 Port support PoE Switch in Metal case(260W power)
Obsolète (Fin de vie)Ce produit n'est plus proposé à la vente
FICHE TECHNIQUE
Description
VM-S1016PEG-C-16port 10/100/1000M POE Switch provides the seamless network connection.
It integrates 10/100/1000Mbps Ethernet network capabilities. These POE ports can automatically
detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs). In this
situation, the electrical power is transmitted along with data in one single cable allowing you to
expand your network where there are no power lines or outlets, where you wish to fix devices
such as APs, IP Cameras or IP Phones, etc.Features
- Supports PoE power up to 30W for each PoE port Supports All power up to 260W
- Supports PoE IEEE802.3at compliant PDs
- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex
- Mode
- 8K entry MAC address table of the S1016PEG with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- Internal power adapter supply.
SPECIFICATIONS
Model VM-S1016PEG-C
Chipset RTL8376 + RTL8218
Standards
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, IEEE
802.3at, IEEE 802.3af
Network Media (Cable)
10BASE-T: UTP category 3,4,5 cable (maximum 100m)
100BASE-T: UTP category 5,5e cable (maximum 100m)
1000Base-T: UTP category 5e,6 cable (maximum 100m)
Number of Ports 16 x 10/100/1000Mbps Auto-Negotiation ports
LED indicators
Port Link/Act, Speed
POE POE
Other Power
Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 32G
Frame Filtering and Forward Rate
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
Dimensions (L × W × H) 442*208*44 mm
Environment
Operating Temperature: 0℃~40℃
Storage Temperature: -10℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Certification CE,FCC,VCCI Class A
