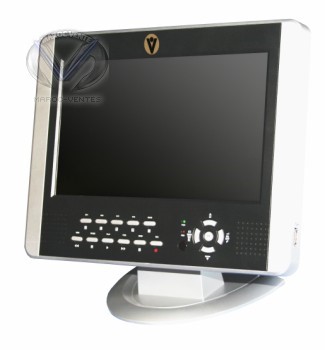

visio KD-824M - LCD DVR Combo 10.2” lntegrated

Model

KD-824M

Video Input Format

NTSC / PAL : BNC 4CH In / 1CH Out           (Composite)

Display Speed(Quad Mode)

NTSC : 120 fps(4x30 fps) ; PAL: 100 fps        (4x25 fps)

Recording Speed(Quad Mode)

NTSC : Max. 60 fps ; PAL : Max. 50 fps

Recording Speed(Each Mode)

NTSC: 3 fps ~ Max. 30 fps ;PAL : 3 fps ~ Max. 25 fps adjustable (Each Mode)

Compression Method

MJPEG:12-20K Bytes per frame

Video Quality: Low@12K Bytes; Normal@15K Bytes; High@20K Bytes

Hard Disk Capacity

Up to 500G Bytes , IDE or SATA  interface HD×1

LCD Display

10.2" color LCD, 800x480,300:1,
450nit,view angle:120°

Recording Time

15 days continue recording at 25 fps with 500GB HD

Recording Mode

Continuous, motion detection, sensor activated, time schedule

Sensors, Alarm

4 Input, 1 Output(alarm),2 Pin for RS-485 control PTZ

PTZ Control

RS-485

USB Port For Playback

Yes

IR Remote Control Unit

Yes

Audio

1CH Input/1CH RCA Out

PS/2 Mouse

optional

Power Supply

100~240 VAC/DC 12V,5A(Adapter Supplying)

Dimensions (L×W×H)

(Not Including Bracket) 290×230×70mm
