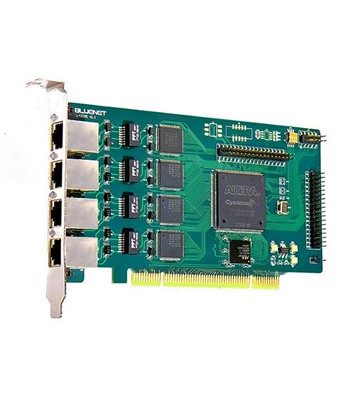

Bluenet BL420D - Carte Digital PCI avec 4 Ports E1

-17%

Quantité

Prix Public : 6 990,00 Dh/HT

Hors Taxe : 5 799,00 Dh/HT

Economie : 1 191,00 - 17%

Carte Digital PCI avec 4 Ports With Hardware channel switching More efficient processing ability,Supporting Hardware HDLC.Providing E1/T1/J1 support in one card,Compliance with international telecommunications standards ,Specifically designed for the Aste

Disponibilité : En Stock

Evalutation :

Evaluer ce produit.

Description
Caracteristiques Technique
Téléchargements
Accessoires
Avis des clients

FICHE TECHNIQUE

Technical Specifications
Size	9.5*10CM，Half-length standard industry pci card. Weight 200g
Configure	BL420D/BL420DE – Quad span E1/T1/J1
	BL220D/BL220DE – Dual span E1/T1/J1
	BL120D/BL120DE – Single span E1/T1/J1
PCI	Auto adaptive to 5v and 3.3v PCI 2.2 bus. Auto configuration and compatiable with popular mianboards.
PCI	32bits,132M bytes/sec DMA transmission and supporting both slave and master mode.DMA transmission can be optimized according to mianboard.
PCIe	Support PCI Express 1X,4X,8X,16X
PHY	RJ45 120/75Ω DSX-1/CSU-1 Line-buildouts
Framer	Two Standalone framer to process receive and transmit frame. Supporting Frame formats:CRC4/non-CRC4/ESF/D4T1/E1
	Automatic produce DS1 idle code. Supporting T1.403-1998.Producing and checking RAI-CI/AIS-CI/RAI
	RCL,RLOS,RRA,RAIS warning interrupt
Standards	ANSI: T1.403-1995, T1.231–1993, T1.408 AT&T: TR54016, TR62411 ITU: G.703, G.704, G.706, G.736, G.775, G.823, G.932, I.431, O.151, Q.161 ITU-T: Recommendation I.432–03/93 B-ISDN User-Network Interface—Physical Layer Specification ETSI: ETS 300 011, ETS 300 166, ETS 300 233, CTR12, CTR4 Japanese: JTG.703, JTI.431, JJ-20.11 (CMI Coding Only)
Environment	Temperature range:0 – 50C
Leds	One tri-colors led for every interface.Total leds: 4
